Jarrett Winch 2 Speed 5:1 / 1:1 (700kg) F10206WC-Webbing/Snap Hook
WB-F10206WC

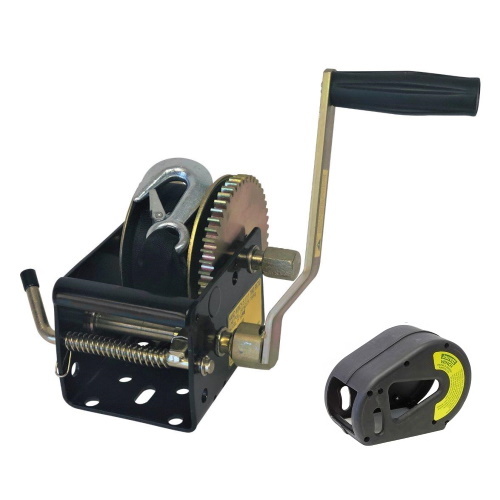

Jarrett 2 Speed Boat Trailer Winch 5:1 / 1:1 with Cover (700kg) - 6m Webbing Strap & Snap Hook
Jarrett 2 Speed Boat Trailer Winch 5:1 / 1:1 with Cover (700kg) - 6m Webbing Strap & Snap Hook
- Heavy duty 4mm winch body
- Steel bushes
- Machined gears
- Spare parts available
- Electroplated zinc cobalt handle
- Powder coated finish
- Detachable handle
Note: This winch are not to be used for lifting.
This winch is recommended for boat size up to 6 metres, aluminium or fibreglass hull boat, where trailer design is unknown or has no keel rollers or side wobbles. For fast slack cable retrieval, use the 1:1 ratio to retrieve slack cable, when the cable becomes under a load too heavy to operate then use the 5:1 to complete the retrieval of the boat. The winch is equipped with removable handle for change of ratio option.
Winches are not intended (1) for the movement of people and (2) as a load securing device for boats on trailers.
(WB-F10206WC)
- For maximum capacity, winches are to be installed using the four hole bolt down pattern
- Marine Winches are not intended as a load securing device
- Winches are not intended for the transportation of people
Marine - General Marine 2 Speed Changeable
| GEAR RATIO | 5:1 / 1:1 |
| APPLICATION: | PULLING |
| Rated capacity: | 700kg (6860N) |
| Mass (Winch only): | 4.1kg |
| Type of Ratchet: | Lever Action |
| Drum diameter: | 50mm |
| Flange diameter: | 127mm |
| Drum width: | 52mm |
| Max cable capacity: | 15m x ??5mm |
| Max web capacity: | 9m |
| Max. effort on handle at rated load: | 25kg |
| Cable breaking strain: | 1855kg |
| Webbing breaking strain: | 2070kg |
| Cable (Galv) as supplied: | 6m x ??5mm |
| Web (as supplied): | 6m |
| Fastening device: | Snap Hook |
| MODEL: WEBBING | F10206/(WC) |
| MODEL: WINCH ONLY | F10218 |
| MODEL: CABLE | F10217 |
| Model # | F10206WC |
| Barcode # | 9314691942060 |
| Unit Of Measure | ea |
