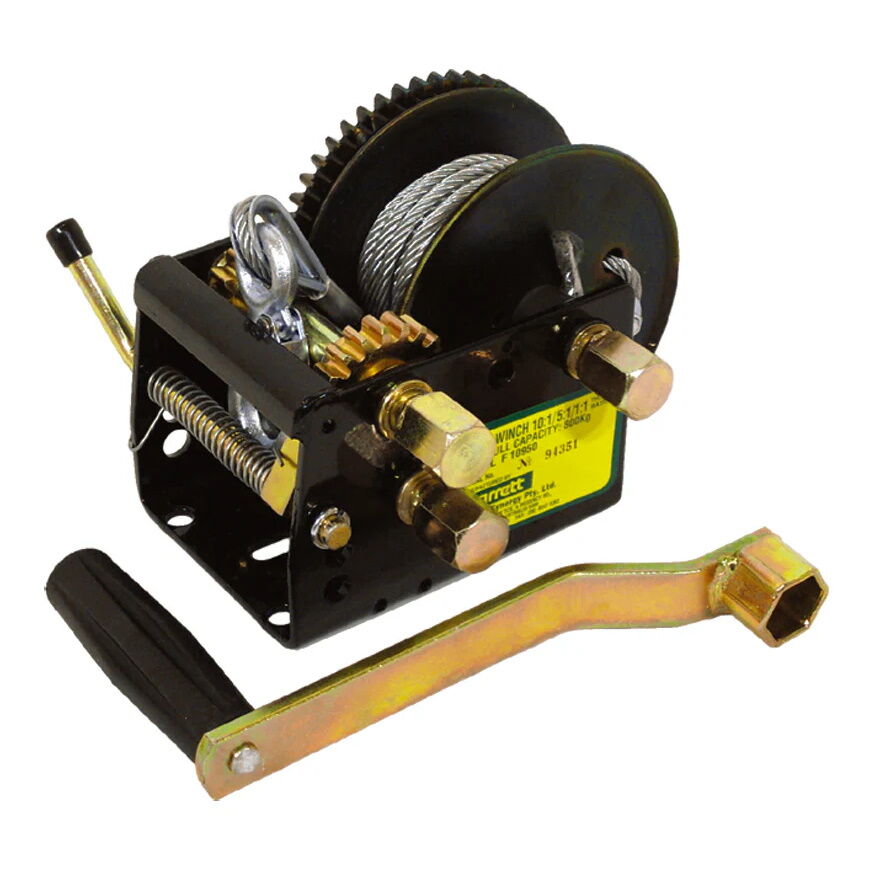

Jarrett Winch 3 Speed 10:1/5:1/1:1 (800kg) F10950-Cable/Snap Hook
WB-F10950
Jarrett 3 Speed Boat Trailer Winch 10:1 / 5:1 / 1:1 - 7.5m X 5mm Cable & Snap Hook - Winch rated at 800kg capacity.
- Heavy duty 4mm winch body
- Steel bushes
- Machined gears
- Spare parts available
- Electroplated zinc cobalt handle
- Powder coated finish
- Detachable handle - Handle position interchangeable to change gear ratio
Note: These winches are not to be used for lifting.
This winch is recommended for any boat size over 6 metres. 3 in 1 ratio winch, 1:1 for fast retrieval of slack cable, 5:1 ratio which should retrieve the boat approx. two thirds up the trailer, when handle effort becomes uncomfortable, then use 10:1 ratio to complete the retrieval of the boat.
Winches are not intended (1) for the movement of people and (2) as a load securing device for boats on trailers.
(WB-F10950)
- For maximum capacity, winches are to be installed using the four hole bolt down pattern
- Marine Winches are not intended as a load securing device
- Winches are not intended for the transportation of people
Marine - General Marine 3 Speed Changeable
GEAR RATIO | 10:1 / 5:1 / 1:1 | 10:1 / 5:1 / 1:1 |
APPLICATION: | PULLING | PULLING |
Rated capacity: | 800kg (7845N) | 1,000kg (9806N) |
Mass (Winch only): | 5kg | 5kg |
Ratchet: | Lever Action | Lever Action |
Drum diameter: | 50mm | 50mm |
Flange diameter: | 127mm | 127mm |
Drum width: | 52mm | 52mm |
Max cable capacity: | 15m x Ø5mm | 12m x Ø6mm |
Max web capacity: | 9m | 9m |
Max. effort on handle at Rated Load: | 18kg | 18kg |
Cable breaking strain: | 1855kg | 2712kg |
Web breaking strain: | 2070kg | 2070kg |
Cable (Galv) as supplied: | 7.5m x Ø5mm | 7.5m x Ø6mm |
Web as supplied: | 7.5m | 7.5m |
Fastening device: | Snap Hook | Snap Hook |
MODEL: WEBBING | F10952/(WC)/F10952 | |
MODEL: NO CABLE | F10951 | F10951 |
MODEL: CABLE | F10950 | F10953 |
Model # | F10950 |
Barcode # | 9314691919505 |
Unit Of Measure | ea |
