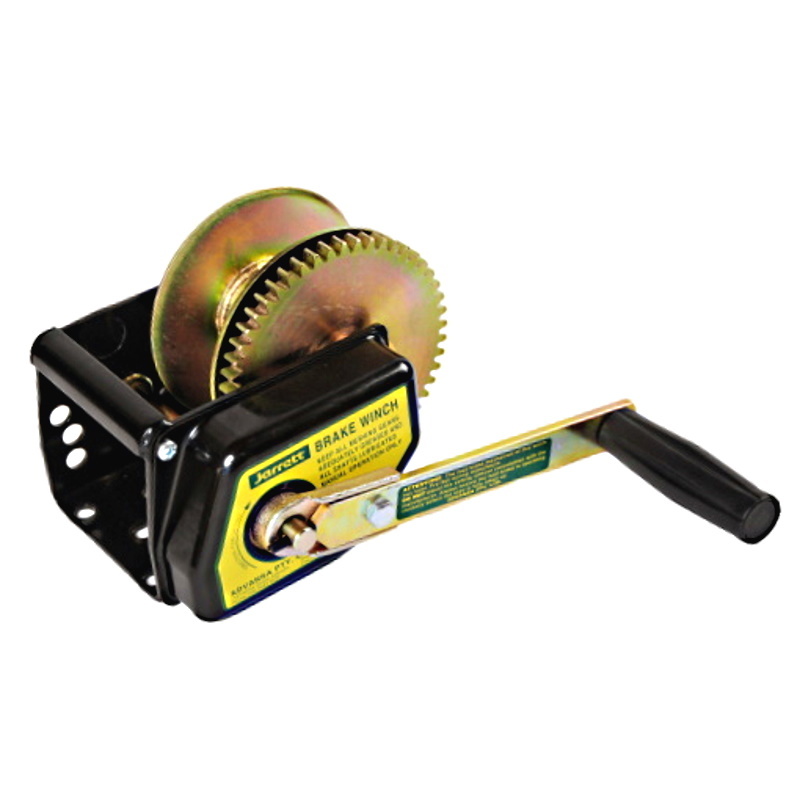

Jarrett Brake Winch 3:1 (200kg) F18220-Bare
WB-F18220
Jarrett 8000 Series Brake Winch 3:1 - No Cable - Winch rated at 200kg capacity.
Jarrett 8000 Series Brake Winch 3:1 - No Cable - Winch rated at 200kg capacity.
- Heavy duty 4mm winch body
- Steel bushes
- Self actuating brake mechanism
- Fully enclosed brake
- Electroplated zinc cobalt handle
- Powder coated finish
- Detachable handle
Note: Webbing can be used on F18220 provided that a snap hook is used (not an “S” hook); and the winch is not used for lifting.
Recommended for lifting applications.
Self actuating brake requires a minimum of 18kg to operate safely. Winches are not intended for the movement of people.
(WB-F18220)
Note: Common user problem with the 8000 Series range of winches is the brake mechanism does not work when first assembled.
When packaged, the winch and handle are separate and need to be assembled as per the instructions included.
Handle Assembly is: The handle adaptor is turned clockwise until the ratchet is engaged prior to attaching the handle and securing with screw.
8000 Series Brake Winch
Model (Winch only) : F18220
Gear Ratio: 3:1
Application: Lifting
Rated Capacity: 200kg (1960N)
Mass (Winch only): 6kg
Type of Brake: Self Actuating
Drum Diameter: 50mm
Flange Diameter: 130mm
Drum Width: 52mm
Maximum Cable Capacity: 15m x Ø5mm
Maximum Fibre Rope Capacity: 12m x Ø6mm
Max. Effort on handle at Rated Load: 22.8 kg
- For maximum capacity, winches are to be installed using the four hole bolt down pattern
- Winches are not intended for the transportation of people
Industrial and Safety Winch -
8000 Series Brake Winch
| GEAR RATIO | 3:1 | 5:1 | 10:1 |
| APPLICATION: | Lifting | Lifting | Lifting |
| Rated capacity: | 200kg (1960N) | 300kg (2940N) | 500kg (4900N) |
| Mass (Winch only): | 6kg | 6kg | 6kg |
| Type of Brake: | Self Actuating | Self Actuating | Self Actuating |
| Drum diameter: | 50mm | 50mm | 50mm |
| Flange diameter: | 130mm | 130mm | 130mm |
| Drum width: | 52mm | 52mm | 52mm |
| Max cable capacity: | 15m x Ø5mm | 15m x Ø5mm | 12m x Ø6mm |
| Max. effort on handle at Rated Load: | 22.8kg | 26kg | 18kg |
| Cable breaking strain: | 1855kg | 1855kg | 2712kg |
| Cable (Galv) as supplied: | 7.5m x Ø5mm | 7.5m x Ø5mm | 7.5m x Ø6mm |
| Fastening device: | Snap Hook | Snap Hook | Snap Hook |
| MODEL: CABLE | F18210 | F18230 | F18260 |
| MODEL: FIBRE ROPE | F18215 | F18235 | F18265 |
| MODEL: WINCH ONLY | F18220 | F18240 | F18280 |
Webbing can be used on F18220 provided that:
- a snap hook is used (not an "S" hook); and
- the winch is not used for lifting
| Model # | F18220 |
| Barcode # | 9314691982202 |
| Unit Of Measure | ea |
