Jarrett Winch 1 Speed 3:1 (500kg) F10213-Bare

WB-F10213

$125.10
Sold Out

Jarrett Boat Trailer Winch 3:1 (500kg) - No Cable - Winch Only



Free pick-up from store - $0.00
Free pick-up from Ansco, 12 Water Road Preston VIC 3072 between 9am and 5pm Monday to Friday.

Jarrett Boat Trailer Winch 3:1 (500kg) - No Cable - Winch Only Note:

  • Heavy duty 4mm winch body
  • Steel bushes
  • Machined gears
  • Electroplated zinc cobalt, powder coated finish

These winches are not to be used for lifting. “S” hook is not as secure as the snap hook. These winches are recommended for boat size up to 6 metres, aluminium or fibreglass hull boat, where trailer has fitted keel rollers and side wobbles. If 3:1 winch does the job but less effort is required to retrieve the boat, then the 5:1 winch is recommended.

Winches are not intended (1) for the movement of people and (2) as a load securing device for boats on trailers.

(WB-F10213)

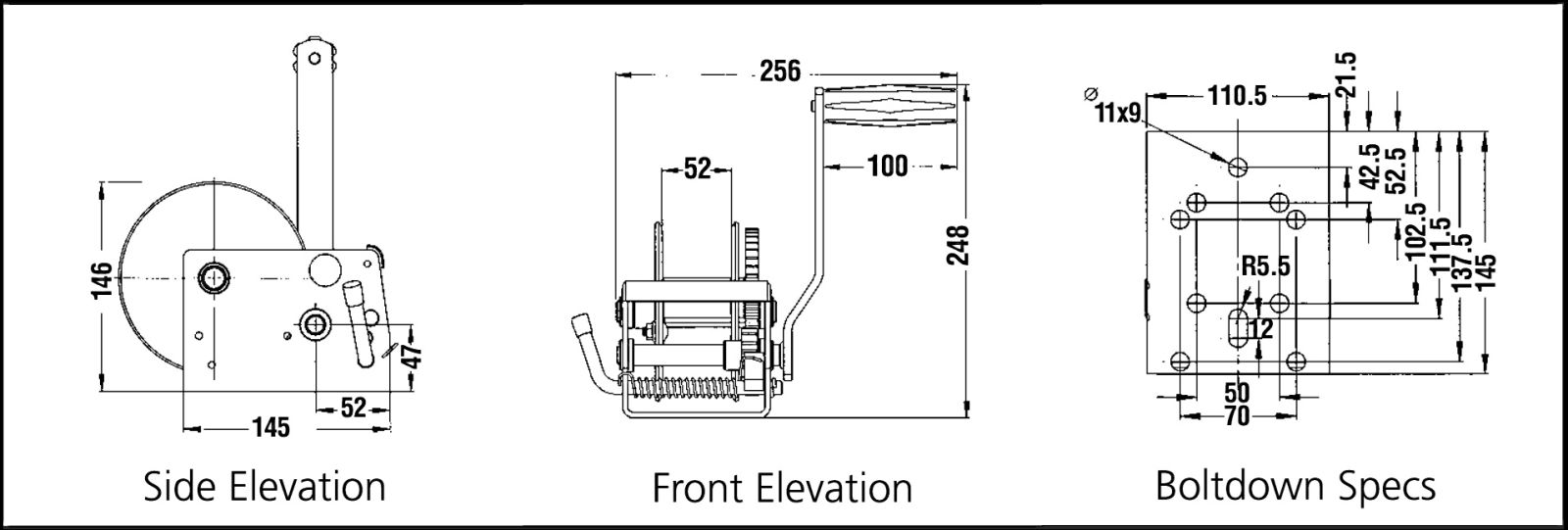

  • For maximum capacity, winches are to be installed using the four hole bolt down pattern
  • Marine Winches are not intended as a load securing device
  • Winches are not intended for the transportation of people


Marine - General Marine Series

GEAR RATIO    1:1 3:1 5:1 5:1
APPLICATION:    PULLING PULLING PULLING PULLING
Rated capacity:   200kg (1960N) 500kg (4900N) 500kg (4900N) 700kg (6860N)
Mass (Winch only):   3kg 3.8kg 4.1kg 4.1kg
Type of Ratchet:   Lever Action Lever Action Lever Action Lever Action
Drum diameter:   50mm 50mm 50mm 50mm
Flange diameter:   127mm 127mm 127mm 127mm
Drum width:   52mm 52mm 52mm 52mm
Max cable capacity:   20m x Ø4mm 20m x Ø4mm 20m x Ø4mm 15m x Ø5mm
Max web capacity:     9m 9m 9m
Max. effort on handle at rated load:   25kg 20kg 25kg 25kg
Cable breaking strain:   1270kg 1270kg 1270kg 1855kg
Webbing breaking strain:     2070kg 2070kg 2070kg
Cable (Galv) as supplied:   6m x Ø4mm 6m x Ø4mm 6m x Ø4mm 6m x Ø5mm
Web (as supplied):     6m   6m
Fastening device:   S Hook S Hook Snap Hook Snap Hook
MODEL: WEBBING     F10202   F10204/(WC)
MODEL: WINCH ONLY     F10213   F10215
MODEL: CABLE   F10210 F10212 F10214 F10216



Model # F10213
Barcode # 9314691912131
Unit Of Measure ea
