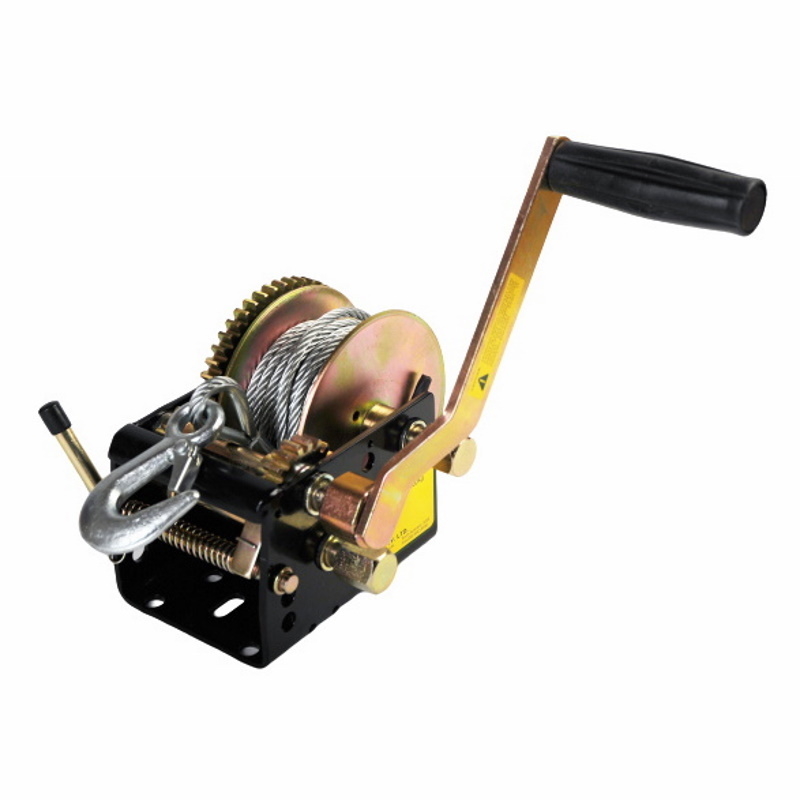

Jarrett Winch 3 Speed 10:1/5:1/1:1 (1000kg) F10953-Cable/Snap Hook
WB-F10953
Jarrett 3 Speed Boat Trailer Winch 10:1 / 5:1 / 1:1 - 7.5m X 6mm Cable & Snap Hook - Winch rated at 1000kg capacity using ??6mm cable only.
Jarrett 3 Speed Boat Trailer Winch 10:1 / 5:1 / 1:1 - 7.5m X 6mm Cable & Snap Hook - Winch rated at 1000kg capacity using Ø6mm cable only.
- Heavy duty 4mm winch body
- Steel bushes
- Machined gears

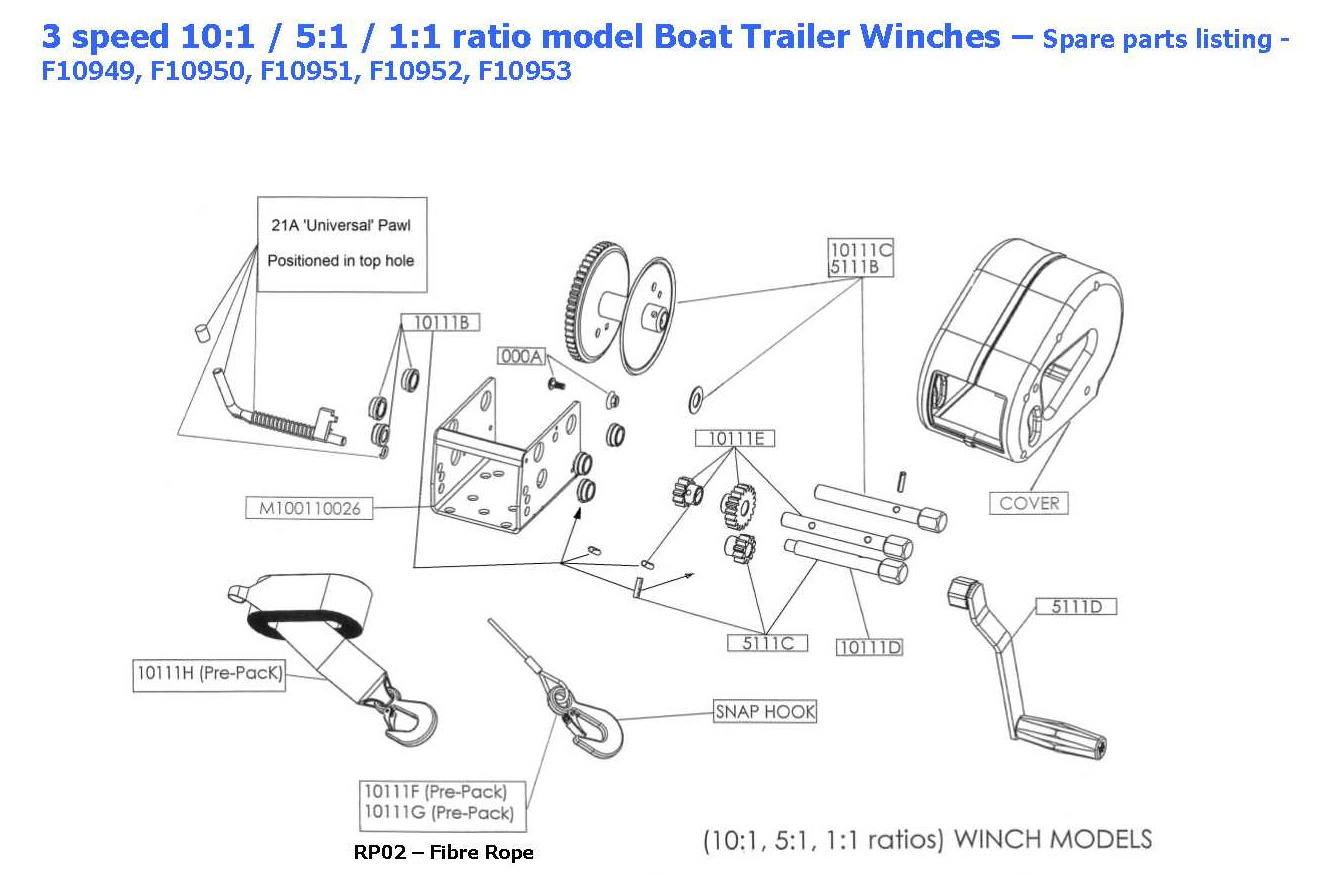

- Spare parts available
- Electroplated zinc cobalt handle
- Powder coated finish
- Detachable handle - Handle position interchangeable to change gear ratio
Note: This winch is not to be used for lifting.
This winch is recommended for any boat size over 6 metres. 3 in 1 ratio winch, 1:1 for fast retrieval of slack cable, 5:1 ratio which should retrieve the boat approx. two thirds up the trailer, when handle effort becomes uncomfortable, then use 10:1 ratio to complete the retrieval of the boat.
Winches are not intended (1) for the movement of people and (2) as a load securing device for boats on trailers.
(WB-F10953)

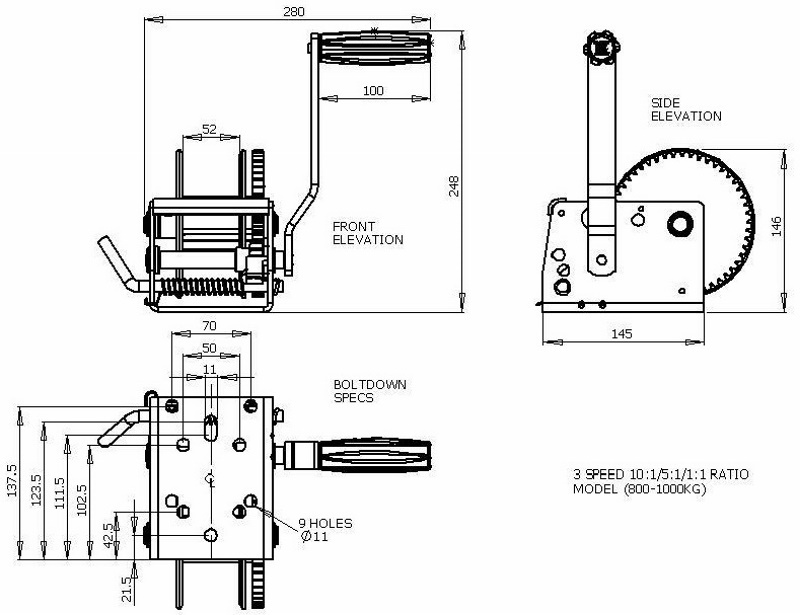

- For maximum capacity, winches are to be installed using the four hole bolt down pattern
- Marine Winches are not intended as a load securing device
- Winches are not intended for the transportation of people
Marine - General Marine 3 Speed Changeable
| GEAR RATIO | 10:1 / 5:1 / 1:1 | 10:1 / 5:1 / 1:1 |
| APPLICATION: | PULLING | PULLING |
| Rated capacity: | 800kg (7845N) | 1,000kg (9806N) |
| Mass (Winch only): | 5kg | 5kg |
| Ratchet: | Lever Action | Lever Action |
| Drum diameter: | 50mm | 50mm |
| Flange diameter: | 127mm | 127mm |
| Drum width: | 52mm | 52mm |
| Max cable capacity: | 15m x Ø5mm | 12m x Ø6mm |
| Max web capacity: | 9m | 9m |
| Max. effort on handle at Rated Load: | 18kg | 18kg |
| Cable breaking strain: | 1855kg | 2712kg |
| Web breaking strain: | 2070kg | 2070kg |
| Cable (Galv) as supplied: | 7.5m x Ø5mm | 7.5m x Ø6mm |
| Web as supplied: | 7.5m | 7.5m |
| Fastening device: | Snap Hook | Snap Hook |
| MODEL: WEBBING | F10952/(WC)/F10952 | |
| MODEL: NO CABLE | F10951 | F10951 |
| MODEL: CABLE | F10950 | F10953 |
| Model # | F10953 |
| Barcode # | 9314691919536 |
| Unit Of Measure | ea |
