Jarrett Winch 2 Speed 5:1 / 1:1 (700kg) F10217-Cable/Snap Hook

WB-F10217

$157.10
Only 3 Left!

Jarrett 2 Speed Boat Trailer Winch 5:1 / 1:1 (700kg) - 6m x 5mm Cable & Snap Hook



Free pick-up from store - $0.00
Free pick-up from Ansco, 12 Water Road Preston VIC 3072 between 9am and 5pm Monday to Friday.

Jarrett 2 Speed Boat Trailer Winch 5:1 / 1:1 (700kg) - 6m x 5mm Cable & Snap Hook

  • Heavy duty 4mm winch body
  • Steel bushes
  • Machined gears
  • Spare parts available
  • Electroplated zinc cobalt handle
  • Powder coated finish
  • Detachable handle

Note: These winches are not to be used for lifting.

These winches are recommended for boat size up to 6 metres, aluminium or fibreglass hull boat, where trailer design is unknown or has no keel rollers or side wobbles. For fast slack cable retrieval, use the 1:1 ratio to retrieve slack cable, when the cable becomes under a load too heavy to operate then use the 5:1 to complete the retrieval of the boat. The winch is equipped with removable handle for change of ratio option.

Winches are not intended (1) for the movement of people and (2) as a load securing device for boats on trailers.

(WB-F10217)

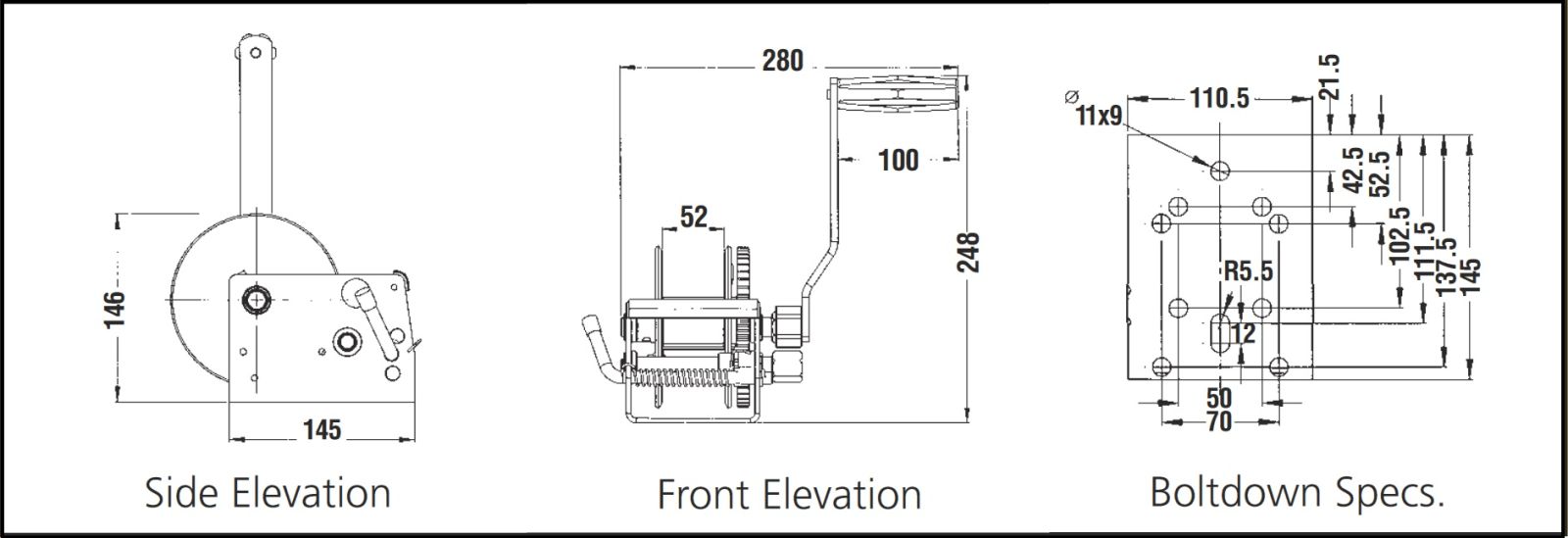

  • For maximum capacity, winches are to be installed using the four hole bolt down pattern
  • Marine Winches are not intended as a load securing device
  • Winches are not intended for the transportation of people


Marine - General Marine 2 Speed Changeable

GEAR RATIO    5:1 / 1:1
APPLICATION:    PULLING
Rated capacity:   700kg (6860N)
Mass (Winch only):   4.1kg
Type of Ratchet:   Lever Action
Drum diameter:   50mm
Flange diameter:   127mm
Drum width:   52mm
Max cable capacity:   15m x ??5mm
Max web capacity:   9m
Max. effort on handle at rated load:   25kg
Cable breaking strain:   1855kg
Webbing breaking strain:   2070kg
Cable (Galv) as supplied:   6m x Ø5mm
Web (as supplied):   6m
Fastening device:   Snap Hook
MODEL: WEBBING   F10206/(WC)
MODEL: WINCH ONLY   F10218
MODEL: CABLE   F10217



Model # F10217
Barcode # 9314691912179
Unit Of Measure ea
