Jarrett Brake Winch 5:1 (300kg) F18240-Bare
WB-F18240
Jarrett 8000 Series Brake Winch 5:1 - No Cable - Winch rated at 300kg capacity.
- Heavy duty 4mm winch body
- Steel bushes
- Self actuating brake mechanism
- Fully enclosed brake
- Electroplated zinc cobalt handle
- Powder coated finish
- Detachable handle
Note:
- Recommended for lifting applications.
- Self actuating brake requires a minimum of 18kg to operate safely.
- Winches are not intended for the movement of people.
(PREVIOUSLY known as F10341)
(WB-F18240)
Note: Common user problem with the 8000 Series range of winches is the brake mechanism does not work when first assembled.
When packaged, the winch and handle are separate and need to be assembled as per the instructions included.
Handle Assembly is: The handle adaptor is turned clockwise until the ratchet is engaged prior to attaching the handle and securing with screw.

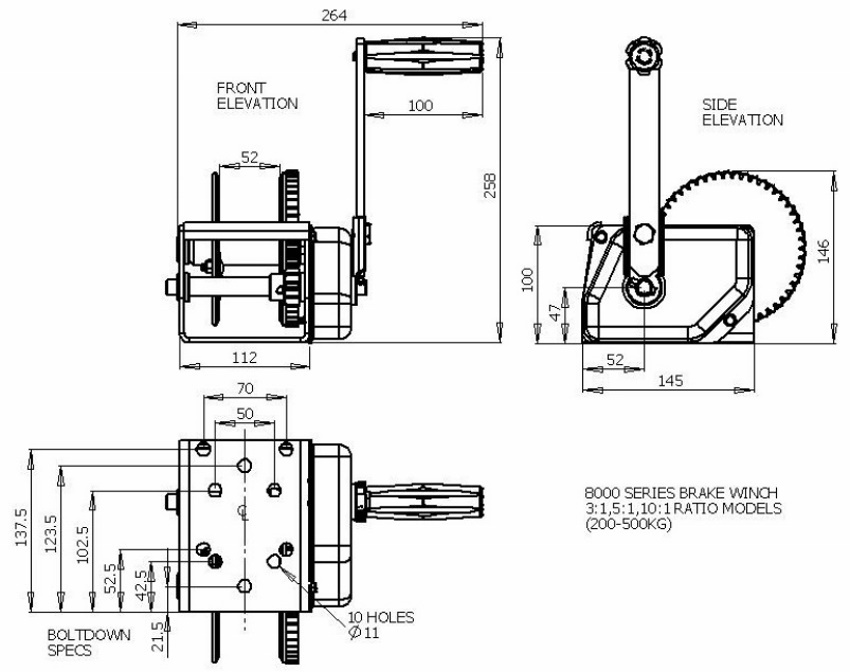

- For maximum capacity, winches are to be installed using the four hole bolt down pattern
- Winches are not intended for the transportation of people
Industrial and Safety Winch -
8000 Series Brake Winch
GEAR RATIO | 3:1 | 5:1 | 10:1 |
APPLICATION: | Lifting | Lifting | Lifting |
Rated capacity: | 200kg (1960N) | 300kg (2940N) | 500kg (4900N) |
Mass (Winch only): | 6kg | 6kg | 6kg |
Type of Brake: | Self Actuating | Self Actuating | Self Actuating |
Drum diameter: | 50mm | 50mm | 50mm |
Flange diameter: | 130mm | 130mm | 130mm |
Drum width: | 52mm | 52mm | 52mm |
Max cable capacity: | 15m x Ø5mm | 15m x Ø5mm | 12m x Ø6mm |
Max. effort on handle at Rated Load: | 22.8kg | 26kg | 18kg |
Cable breaking strain: | 1855kg | 1855kg | 2712kg |
Cable (Galv) as supplied: | 7.5m x Ø5mm | 7.5m x Ø5mm | 7.5m x Ø6mm |
Fastening device: | Snap Hook | Snap Hook | Snap Hook |
MODEL: CABLE | F18210 | F18230 | F18260 |
MODEL: FIBRE ROPE | F18215 | F18235 | F18265 |
MODEL: WINCH ONLY | F18220 | F18240 | F18280 |
Model # | F18240 |
Barcode # | 9314691982400 |
Unit Of Measure | ea |
