Jarrett Winch 1 Speed 3:1 (500kg) F10212-Cable/S Hook
WB-F10212
$136.90
Only 2 Left!

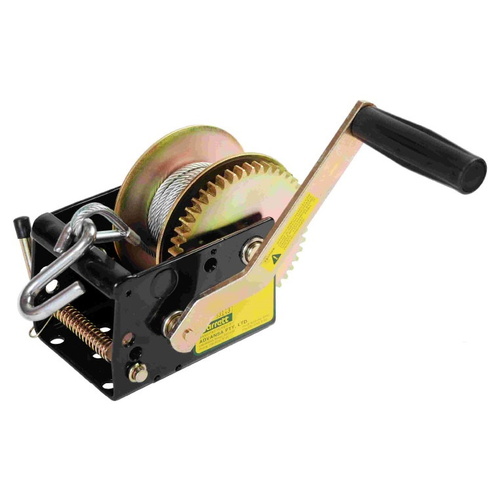

Jarrett Boat Trailer Winch 3:1 (500kg) - 6m x 4mm Cable & S Hook
Jarrett Boat Trailer Winch 3:1 (500kg) - 6m x 4mm Cable & S Hook Note:
- Heavy duty 4mm winch body
- Steel bushes
- Machined gears
- Electroplated zinc cobalt, powder coated finish
These winches are not to be used for lifting.
“S” hook is not as secure as the snap hook. These winches are recommended for boat size up to 6 metres, aluminium or fibreglass hull boat, where trailer has fitted keel rollers and side wobbles. If 3:1 winch does the job but less effort is required to retrieve the boat, then the 5:1 winch is recommended.
Winches are not intended (1) for the movement of people and (2) as a load securing device for boats on trailers.
(WB-F10212)
- For maximum capacity, winches are to be installed using the four hole bolt down pattern
- Marine Winches are not intended as a load securing device
- Winches are not intended for the transportation of people
Marine - General Marine Series
| GEAR RATIO | 1:1 | 3:1 | 5:1 | 5:1 |
| APPLICATION: | PULLING | PULLING | PULLING | PULLING |
| Rated capacity: | 200kg (1960N) | 500kg (4900N) | 500kg (4900N) | 700kg (6860N) |
| Mass (Winch only): | 3kg | 3.8kg | 4.1kg | 4.1kg |
| Type of Ratchet: | Lever Action | Lever Action | Lever Action | Lever Action |
| Drum diameter: | 50mm | 50mm | 50mm | 50mm |
| Flange diameter: | 127mm | 127mm | 127mm | 127mm |
| Drum width: | 52mm | 52mm | 52mm | 52mm |
| Max cable capacity: | 20m x Ø4mm | 20m x Ø4mm | 20m x Ø4mm | 15m x Ø5mm |
| Max web capacity: | 9m | 9m | 9m | |
| Max. effort on handle at rated load: | 25kg | 20kg | 25kg | 25kg |
| Cable breaking strain: | 1270kg | 1270kg | 1270kg | 1855kg |
| Webbing breaking strain: | 2070kg | 2070kg | 2070kg | |
| Cable (Galv) as supplied: | 6m x Ø4mm | 6m x Ø4mm | 6m x Ø4mm | 6m x Ø5mm |
| Web (as supplied): | 6m | 6m | ||
| Fastening device: | S Hook | S Hook | Snap Hook | Snap Hook |
| MODEL: WEBBING | F10202 | F10204/(WC) | ||
| MODEL: WINCH ONLY | F10213 | F10215 | ||
| MODEL: CABLE | F10210 | F10212 | F10214 | F10216 |
| Model # | F10212 |
| Barcode # | 9314691912124 |
| Unit Of Measure | ea |
