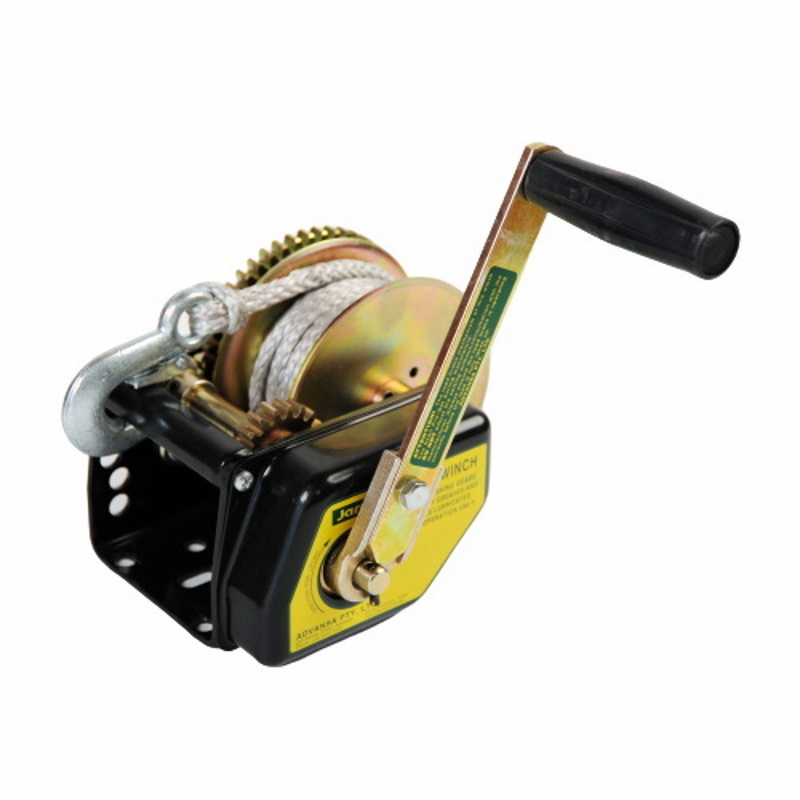

Jarrett Brake Winch 10:1 (500kg) F18265-Fibre/Snap Hook

WB-F18265

$333.89
Sold Out

Jarrett 8000 Series Brake Winch 10:1 - 7.5m x 6mm Fibre Rope & Snap Hook - Winch rated at 500kg capacity.



Free pick-up from store - $0.00
Free pick-up from Ansco, 12 Water Road Preston VIC 3072 between 9am and 5pm Monday to Friday.

F18265 with Fibre Rope Ø6mm - 10:1 ratio model (500kg)

When packaged, the winch and handle are separate and need to be assembled as per the instructions included. Failing to assemble as per the instruction could result in non-actuation of the braking mechanism. To assemble, the handle adaptor is turned clockwise until the ratchet is engaged prior to attaching the handle and securing with screw.

Features:

  • Heavy duty 4mm winch body
  • Steel bushes
  • Self actuating brake mechanism
  • Fully enclosed brake
  • Electroplated zinc cobalt
  • Powder coated finish
  • Detachable handle

Maximum Fibre Rope Capacity: 12m x Ø6mm
Max. Effort on handle at Rated Load: 18kg
Fibre Rope Breaking Strain: 2050kg


Recommended for lifting applications.
Webbing cannot be used on these winches
Self actuating brake requires a minimum of 18kg to operate safely.
Jarrett Winches and Cranes are not designed for the movement of people.

(WB-F18265)

Note: Common user problem with the 8000 Series range of winches is the brake mechanism does not work when first assembled.
When packaged, the winch and handle are separate and need to be assembled as per the instructions included.
Handle Assembly is: The handle adaptor is turned clockwise until the ratchet is engaged prior to attaching the handle and securing with screw.

  • For maximum capacity, winches are to be installed using the four hole bolt down pattern
  • Winches are not intended for the transportation of people

Industrial and Safety Winch -

8000 Series Brake Winch

GEAR RATIO   3:1 5:1 10:1
APPLICATION:   Lifting Lifting Lifting
Rated capacity:   200kg (1960N) 300kg (2940N) 500kg (4900N)
Mass (Winch only):   6kg 6kg 6kg
Type of Brake:   Self Actuating Self Actuating Self Actuating
Drum diameter:   50mm 50mm 50mm
Flange diameter:   130mm 130mm 130mm
Drum width:   52mm 52mm 52mm
Max cable capacity:   15m x Ø5mm 15m x Ø5mm 12m x Ø6mm
Max. effort on handle at Rated Load:   22.8kg 26kg 18kg
Cable breaking strain:   1855kg 1855kg 2712kg
Cable (Galv) as supplied:  7.5m x Ø5mm 7.5m x Ø5mm 7.5m x Ø6mm
Fastening device:   Snap Hook Snap Hook Snap Hook
MODEL: CABLE   F18210 F18230 F18260
MODEL: FIBRE ROPE  F18215 F18235 F18265
MODEL: WINCH ONLY   F18220 F18240 F18280





Model # F18265
Barcode # 9314691982653
Unit Of Measure ea
