Jarrett Brake Winch 15:1 (1250kg) F11650-Bare

WB-F11650

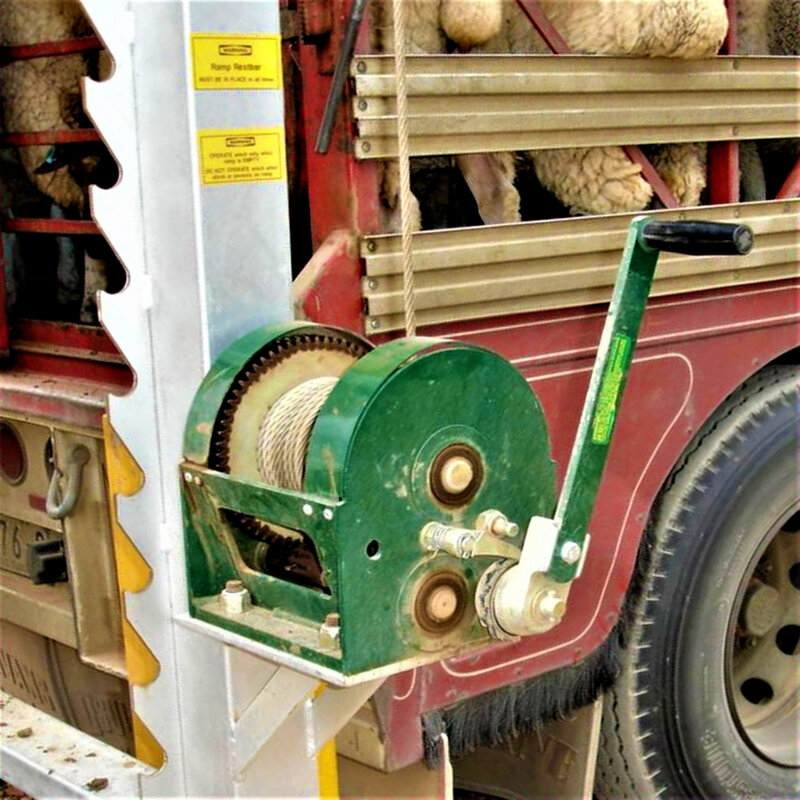

Jarrett 600 Series Brake Winch 15:1 (1250kg) - No Cable - Winch Only.

Calculate Shipping

Free pick-up from store - $0.00
Free pick-up from Ansco, 12 Water Road Preston VIC 3072 between 9am and 5pm Monday to Friday.

Jarrett 600 Series Brake Winch 15:1 (1250kg) - No Cable - Winch Only.

The Jarrett ‘600’ series large drum capacity load brake winch contains a self activated, dual friction mechanism that automatically locks the load in position when the handle is released. This allows the operator total control over the winch, whilst preventing accidental loss of load and at the same time eliminates the danger of free spinning handle.

Heavy duty 4mm winch body
Steel bushes
Self actuating brake mechanism
Heavy duty friction disc pads
Spare parts available
Electroplated zinc cobalt, powder coated finish
Removable handle

Webbing cannot be used on this winch.

Self actuating brake requires a minimum of 18kg to operate safely.

These winches are recommended for lifting and pulling applications within the rated capacity. Suitable for rural and farming applications.

Winches are not intended for the movement of people.

** Due to the weight of the winch, please contact Ansco direct to place an order if not using 'In Store Pickup' **

Email [email protected]

(WB-F11650)

For maximum capacity, winches are to be installed using the four hole bolt down pattern
Winches are not intended for the transportation of people

Industrial and Safety Winch - 600 Series Brake Winch

GEAR RATIO	8:1	15:1
APPLICATION:	Lifting / Pulling	Lifting / Pulling
Rated capacity:	630kg (6174N)	1250kg (12250N)
Mass (Winch only):	20kg	26kg
Type of Brake:	Self Actuating	Self Actuating
Drum diameter:	100mm	100mm
Flange diameter:	180mm	180mm
Drum width:	135mm	135mm
Max cable capacity (Ø 6mm): Max cable capacity (Ø 8mm): Max cable capacity (Ø 10mm):	45m not sup 22m not sup 15m not sup	45m not sup 22m not sup 15m not sup
Max. effort on handle at Rated Load:	19kg	22kg
Recommended minimum galvanised steel core cable to be fitted to winch	G2070 7/19	G2070 7/19
Cable (to above type) breaking strain Ø 6mm Ø 8mm Ø 10mm	2412kg Min. size for F11620 3390kg 5300kg	- 3390kg Min. size for F11650 5300kg
MODEL: Winch only	F11620	F11650

Notes:

This tough, long lasting Aussie winch is fitted with an automatic load actuated brake to make the toughest job easier when lifting and lowering loads.

The Jarrett '600' series large drum capacity load brake winch contains a self activated, dual friction mechanism that automatically locks the load in position when the handle is released. This allows the operator total control over the winch, whilst preventing accidental loss of load and at the same time eliminates the danger of free spinning handle.

Webbing cannot be used on these winches.

Suitable for rural and farming applications.

Self actuating brake requires a minimum of 18kg to operates safely.
