Jarrett Winch 1 Speed 1:1 (200kg) F10210-Cable/S Hook
WB-F10210

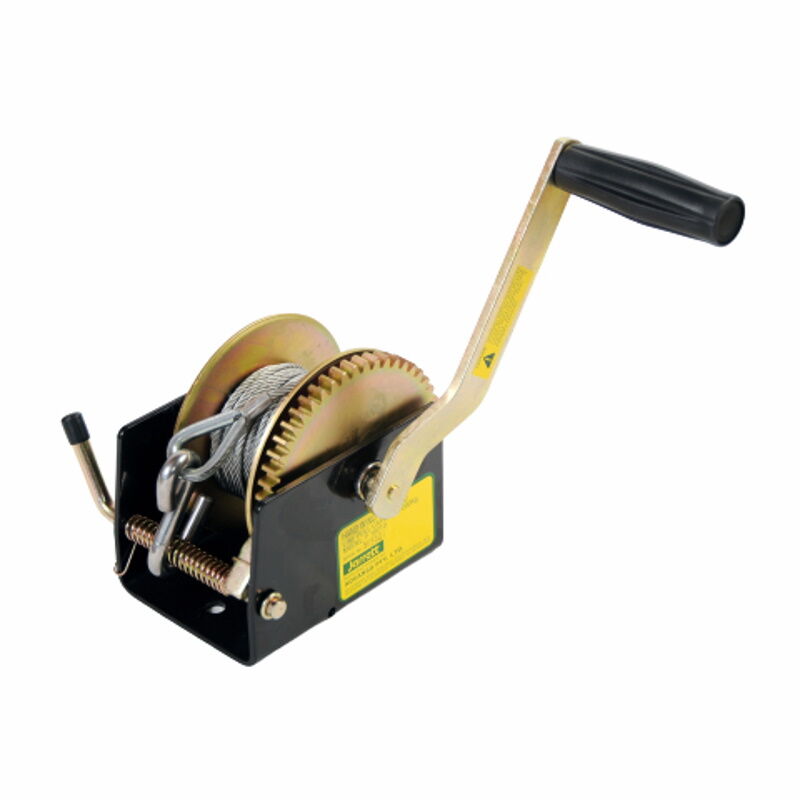

Jarrett Boat Trailer Winch 1:1 (200kg) - 6m x 4mm Cable & S Hook
Jarrett Boat Trailer Winch 1:1 (500kg) - 6m x 4mm Cable & S Hook Note:
- Heavy duty 4mm winch body
- Steel bushes
- Machined gears
- Electroplated zinc cobalt
- Powder coated finish

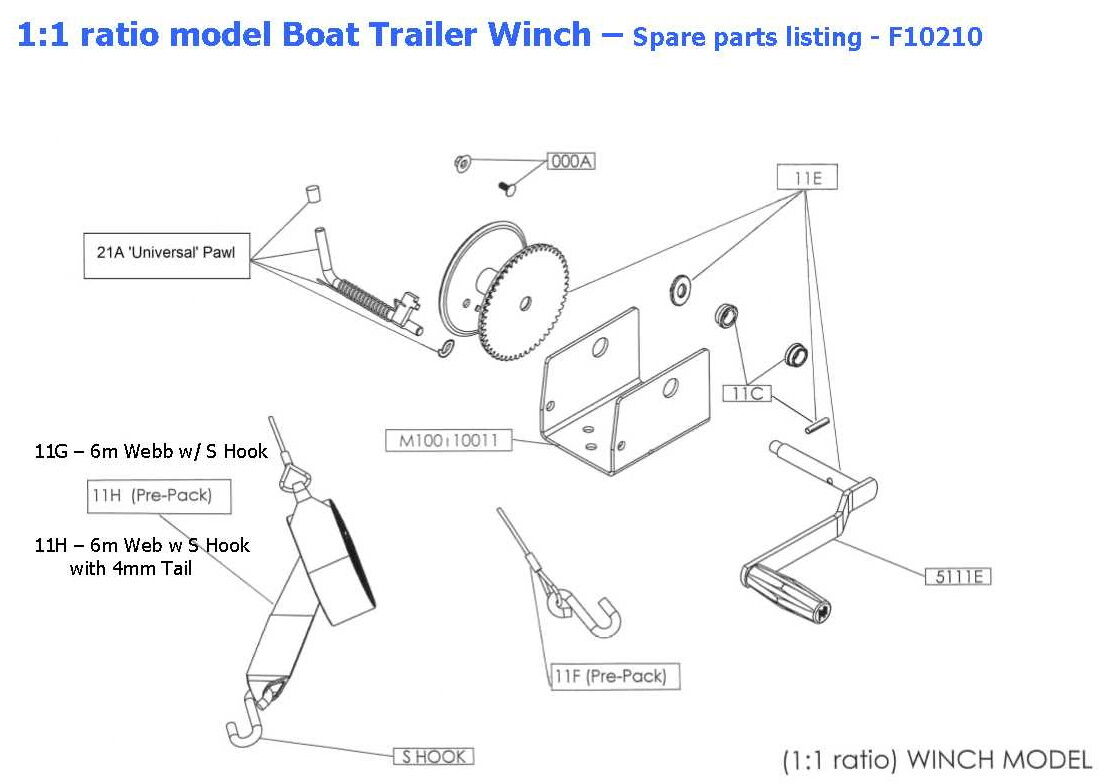

- Spare parts available
“S” hook is not as secure as the snap hook. These winches are recommended for boat size up to 3.6 metre aluminium hull boat.
Jarrett Boat Trailer Winches are not designed (1) for lifting, (2) for the movement of people and (3) as a load securing device for boats on trailer.
(WB-F10210)
Jarrett Boat Trailer Winch
Model: F10210
Gear Ratio: 1:1
Application: Pulling
Rated Capacity: 200kg (1960N)
Mass (Winch only): 3kg
Type of Ratchet: Lever Action
Drum Diameter: 50mm
Flange Diameter: 127mm
Drum Width: 52mm
Maximum Cable capacity: 20m x Ø4mm
Max. Effort on handle at Rated Load: 25kg
Breaking Strain: Cable (Ø4mm) 1270kg
Cable (Galv) as supplied: 6m x Ø4mm
Fastening Device: S-Hook

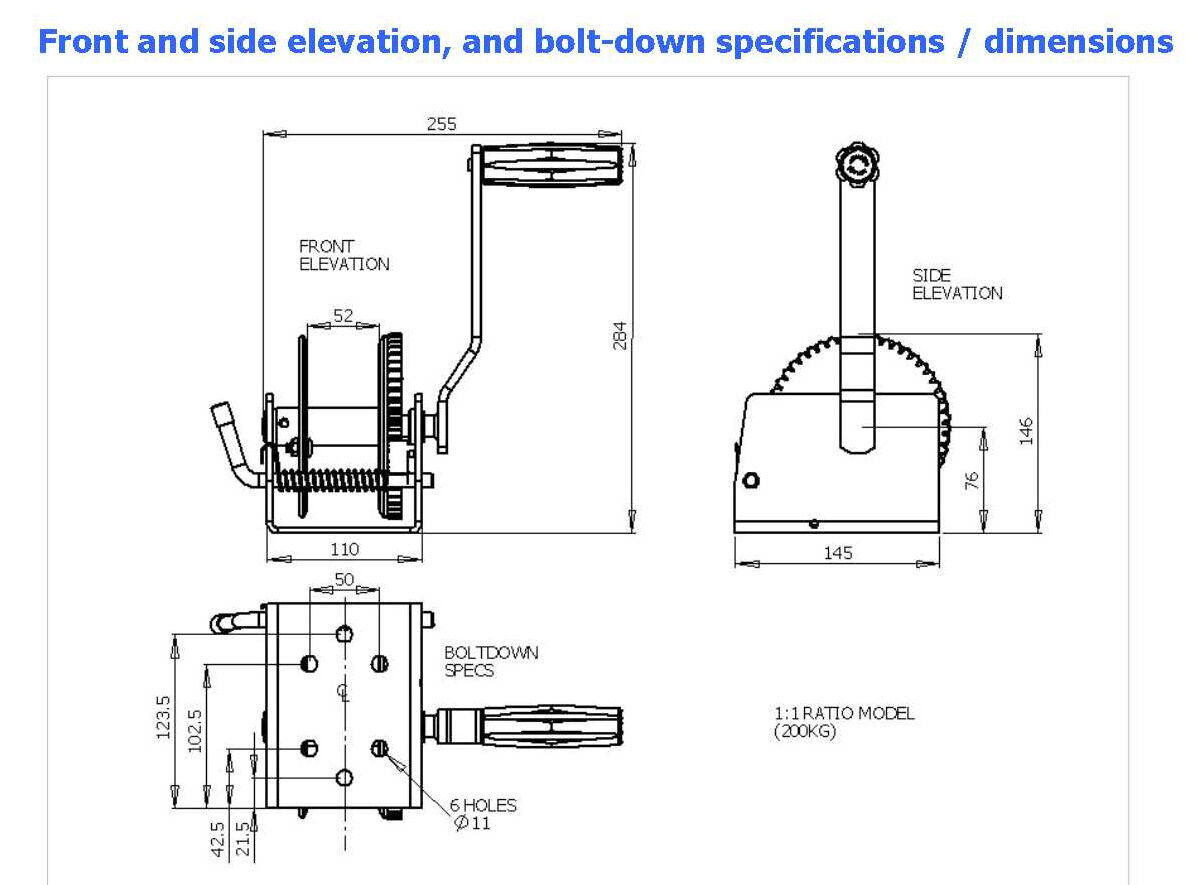

Link to larger view Winch Selection Guide
- For maximum capacity, winches are to be installed using the four hole bolt down pattern
- Marine Winches are not intended as a load securing device
- Winches are not intended for the transportation of people
Marine - General Marine Series
| GEAR RATIO | 1:1 | 3:1 | 5:1 | 5:1 |
| APPLICATION: | PULLING | PULLING | PULLING | PULLING |
| Rated capacity: | 200kg (1960N) | 500kg (4900N) | 500kg (4900N) | 700kg (6860N) |
| Mass (Winch only): | 3kg | 3.8kg | 4.1kg | 4.1kg |
| Type of Ratchet: | Lever Action | Lever Action | Lever Action | Lever Action |
| Drum diameter: | 50mm | 50mm | 50mm | 50mm |
| Flange diameter: | 127mm | 127mm | 127mm | 127mm |
| Drum width: | 52mm | 52mm | 52mm | 52mm |
| Max cable capacity: | 20m x Ø4mm | 20m x Ø4mm | 20m x Ø4mm | 15m x Ø5mm |
| Max web capacity: | 9m | 9m | 9m | |
| Max. effort on handle at rated load: | 25kg | 20kg | 25kg | 25kg |
| Cable breaking strain: | 1270kg | 1270kg | 1270kg | 1855kg |
| Webbing breaking strain: | 2070kg | 2070kg | 2070kg | |
| Cable (Galv) as supplied: | 6m x Ø4mm | 6m x Ø4mm | 6m x Ø4mm | 6m x Ø5mm |
| Web (as supplied): | 6m | 6m | ||
| Fastening device: | S Hook | S Hook | Snap Hook | Snap Hook |
| MODEL: WEBBING | F10202 | F10204/(WC) | ||
| MODEL: WINCH ONLY | F10213 | F10215 | ||
| MODEL: CABLE | F10210 | F10212 | F10214 | F10216 |
| Model # | F10210 |
| Barcode # | 9314691912100 |
| Unit Of Measure | Each |
