Jarrett Winch 1 Speed 5:1 (700kg) F10216-Cable/Snap Hook
WB-F10216
Jarrett Boat Trailer Winch 5:1 (700kg) - 6m x 5mm Cable Snap Hook - Winch rated at 700kg capacity.
Jarrett Boat Trailer Winch 5:1 (700kg) - 6m x 5mm Cable Snap Hook - Winch rated at 700kg capacity.
- Heavy duty 4mm winch body
- Steel bushes
- Machined gears
- Electroplated zinc cobalt, powder coated finish
Note: This winch is not to be used for lifting.
This winch is recommended for boat (outboards and inboards) size up to 6 metres, aluminium or fibreglass hull boat, where trailer design is unknown or has no keel rollers or side wobbles. For fast slack cable retrieval, the dual ratio winch 5:1 / 1:1 (2 speed) is recommended, where the 1:1 ratio is used to retrieve slack cable then use the 5:1 to complete the retrieval of the boat.
Winches are not intended (1) for the movement of people and (2) as a load securing device for boats on trailers.
(WB-F10216)

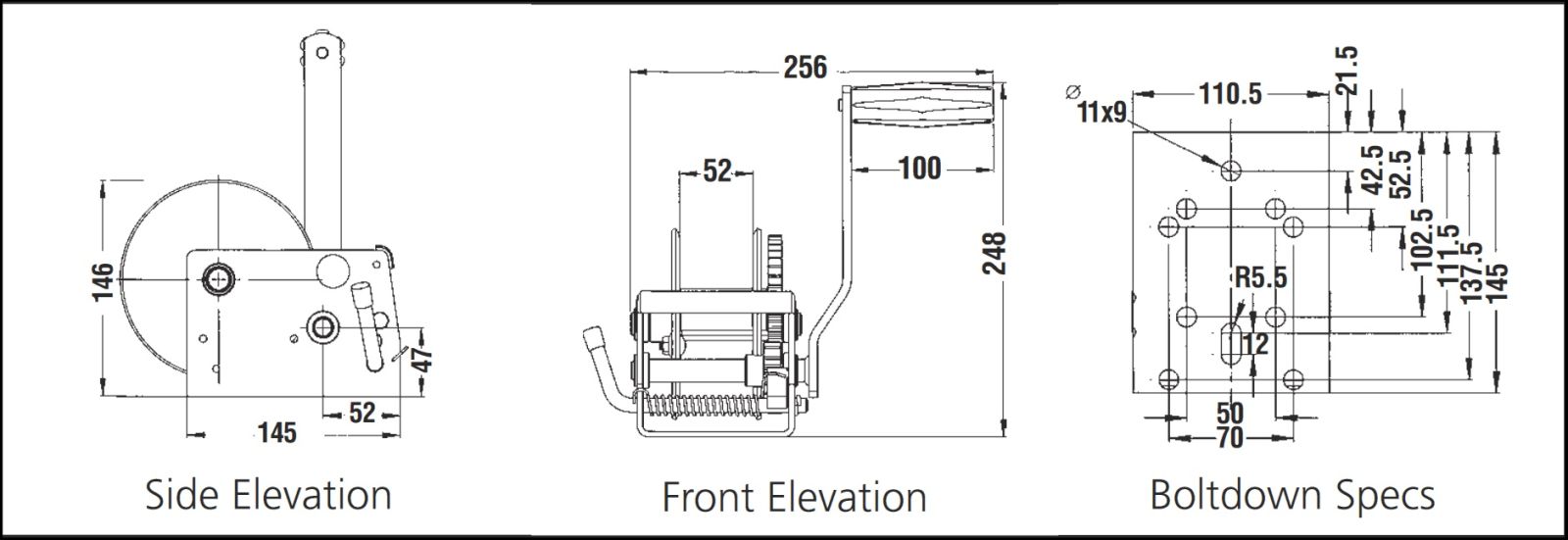

- For maximum capacity, winches are to be installed using the four hole bolt down pattern
- Marine Winches are not intended as a load securing device
- Winches are not intended for the transportation of people
Marine - General Marine Series
| GEAR RATIO | 1:1 | 3:1 | 5:1 | 5:1 |
| APPLICATION: | PULLING | PULLING | PULLING | PULLING |
| Rated capacity: | 200kg (1960N) | 500kg (4900N) | 500kg (4900N) | 700kg (6860N) |
| Mass (Winch only): | 3kg | 3.8kg | 4.1kg | 4.1kg |
| Type of Ratchet: | Lever Action | Lever Action | Lever Action | Lever Action |
| Drum diameter: | 50mm | 50mm | 50mm | 50mm |
| Flange diameter: | 127mm | 127mm | 127mm | 127mm |
| Drum width: | 52mm | 52mm | 52mm | 52mm |
| Max cable capacity: | 20m x ??4mm | 20m x Ø4mm | 20m x Ø4mm | 15m x Ø5mm |
| Max web capacity: | 9m | 9m | 9m | |
| Max. effort on handle at rated load: | 25kg | 20kg | 25kg | 25kg |
| Cable breaking strain: | 1270kg | 1270kg | 1270kg | 1855kg |
| Webbing breaking strain: | 2070kg | 2070kg | 2070kg | |
| Cable (Galv) as supplied: | 6m x Ø4mm | 6m x Ø4mm | 6m x Ø4mm | 6m x Ø5mm |
| Web (as supplied): | 6m | 6m | ||
| Fastening device: | S Hook | S Hook | Snap Hook | Snap Hook |
| MODEL: WEBBING | F10202 | F10204/(WC) | ||
| MODEL: WINCH ONLY | F10213 | F10215 | ||
| MODEL: CABLE | F10210 | F10212 | F10214 | F10216 |
| Model # | F10216 |
| Barcode # | 9314691912162 |
| Unit Of Measure | ea |
