Jarrett Backsaver Crane (500kg) F19001
WB-F19001
Jarrett Backsaver Crane Mark II with Extendable Boom (500kg) - Fitted with 10:1 Brake Winch F18260 - Rated Capacity 500kg with Cable.
Jarrett Backsaver Owner Manual (pdf link) if required, prior to purchase.
The Jarrett Backsaver Crane is fitted with 360° mechanical slewing by means of a worm drive gear. This eliminates the danger of the crane boom swinging out of control when the load is taken up. The boom can only be rotated (slewed) by operating the slewing control handle.
This important safety feature keeps the load under control at all times – essential for one person operation. Jarrett Backsaver Cranes are general purpose stationary cranes and have many applications within industrial, engineering and mining sites.
Located on the back of commercial vehicles they are suitable for loading and unloading goods.
- F18260 is used on 500kg Backsaver Crane
- Heavy duty 4mm winch body
- Steel bushes Self actuating brake mechanism
- Fully enclosed brake
- Electroplated zinc cobalt
- Powder coated finish
- Detachable handle
Jarrett Winches and Cranes are not intended for the movement of people.
(WB-F19001)

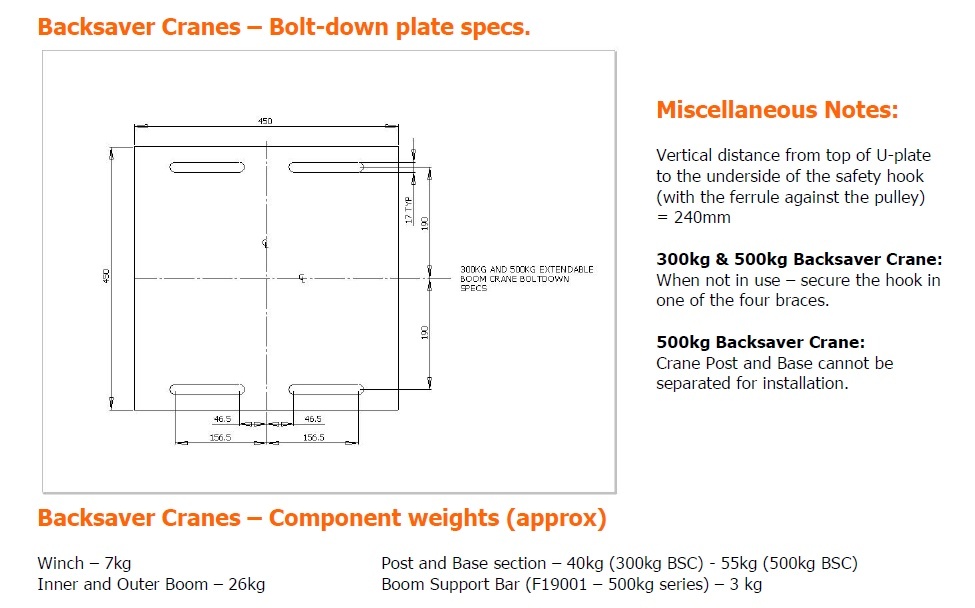

- For maximum capacity, winches are to be installed using the four hole bolt down pattern
- Winches are not intended for the transportation of people
Backsaver Crane:
Backsaver Crane | F12643(300kg) | F19001(500kg) |
Winch Model: Cable | F18230 | F18260 |
GEAR RATIO: | 5:1 | 10:1 |
APPLICATION: | Lifting | Lifting |
Rated capacity: | 300kg (2940N) | 500kg (4900N) |
Mass (Winch only): | 6kg | 6kg |
Type of Brake: | Self Actuating | Self Actuating |
Drum diameter: | 50mm | 50mm |
Flange diameter: | 130mm | 130mm |
Drum width: | 52mm | 52mm |
Max cable capacity: | 15m x Ø5mm | 12m x Ø6mm |
Max. effort on handle at Rated Load: | 26kg | 18kg |
Cable breaking strain | 1855kg | 2712kg |
Cable (Galv) as supplied: | 7.5m x Ø5mm | 7.5m x Ø6mm |
Fastening device: | Snap hook | Snap hook |
Post and Base Section (approx.) | 40kg | 55kg |
Inner and Outer Boom (approx.) | 26kg | 26kg |
Max extended height @ 200kg S.W.L | 1960 (vertical), 1526 (horizontal) | |
Min extended height @ 150kg S.W.L | 1460(v), 1770(h) | |
Max retracted height @ 300kg S.W.L | 1687(v), 1126(h) | |
Min retracted height @ 250kg S.W.L | 1300(v), 1330(h) |
S.W.L - Safe Working Load
The crane will come boxed and on a Pallet.
A Fork Lift will be required at Delivery Address or a suitable truck if picking up at Ansco: 146/48/58cm @ 95kgs
Model # | F19001 |
Barcode # | 9314691919017 |
Unit Of Measure | ea |
