Jarrett Backsaver Crane (300kg) F12643
WB-F12643
Jarrett Backsaver Crane Mark II with Extendable Boom (300kg) - Fitted with 5:1 Brake Winch F18230 - Rated Capacity 300kg with Cable.
Jarrett Backsaver Crane - Mark II with Extendable Boom (300kg) - Fitted with 5:1 Brake Winch F18230 - Rated Capacity 300kg with Cable.
The Jarrett Backsaver Crane is a fixed crane suitable for use in a wide variety of applications:
Many uses within the industrial, mining and construction sites, whether stationary within a shed or mounted to machinery
Fitted to back of utes, trucks and trailers for loading and unloading of goods, fuel drums, motor bikes, car engines, ride-on mowers, cement mixers, fencing, compressors, livestock and even large tyres

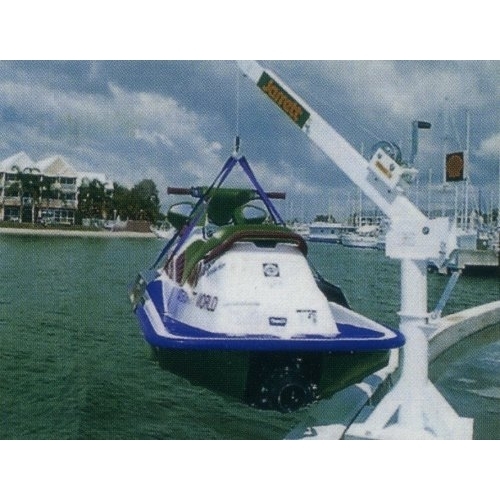

They are great for loading and unloading on wharfs and jetty's - jet skis and small boats
- The lifting capabilities of the Backsaver Crane are supplied by a 300kg manual brake winch
- F18230 is used on 300kg Backsaver Crane
- Heavy duty 4mm winch body
- Steel bushes Self actuating brake mechanism
- Fully enclosed brake
- Supplied with 7.5mm Galvanised cable
- Electroplated zinc cobalt
- Powder coated finish
- Detachable handle
The Jarrett Backsaver Crane is fitted with 360° mechanical slewing by means of a worm drive gear. This eliminates the danger of the crane boom swinging out of control when the load is taken up. The boom can only be rotated (slewed) by operating the slewing control handle. This important safety feature keeps the load under control at all times – essential for one person operation.
Jarrett Winches and Cranes are not intended for the movement of people.
(WB-F12643)
- For maximum capacity, winches are to be installed using the four hole bolt down pattern
- Winches are not intended for the transportation of people
Backsaver Crane:
| Backsaver Crane | F12643(300kg) | F19001(500kg) |
| Winch Model: Cable | F18230 | F18260 |
| GEAR RATIO: | 5:1 | 10:1 |
| APPLICATION: | Lifting | Lifting |
| Rated capacity: | 300kg (2940N) | 500kg (4900N) |
| Mass (Winch only): | 6kg | 6kg |
| Type of Brake: | Self Actuating | Self Actuating |
| Drum diameter: | 50mm | 50mm |
| Flange diameter: | 130mm | 130mm |
| Drum width: | 52mm | 52mm |
| Max cable capacity: | 15m x Ø5mm | 12m x Ø6mm |
| Max. effort on handle at Rated Load: | 26kg | 18kg |
| Cable breaking strain | 1855kg | 2712kg |
| Cable (Galv) as supplied: | 7.5m x Ø5mm | 7.5m x Ø6mm |
| Fastening device: | Snap hook | Snap hook |
| Post and Base Section (approx.) | 40kg | 55kg |
| Inner and Outer Boom (approx.) | 26kg | 26kg |
| Max extended height @ 200kg S.W.L | 1960 (vertical), 1526 (horizontal) | |
| Min extended height @ 150kg S.W.L | 1460(v), 1770(h) | |
| Max retracted height @ 300kg S.W.L | 1687(v), 1126(h) | |
| Min retracted height @ 250kg S.W.L | 1300(v), 1330(h) | |
S.W.L - Safe Working Load
The crane will come boxed and on a Pallet.
A Fork Lift will be required at Delivery Address or a suitable truck if picking up at Ansco: 146/48/58cm @ 82kgs
| Model # | F12643 |
| Barcode # | 9314691916436 |
| Unit Of Measure | ea |
