Cable Auto Figure 8 Audio or Security Systems 100m
A-1155
$29.90
Only 2 Left!

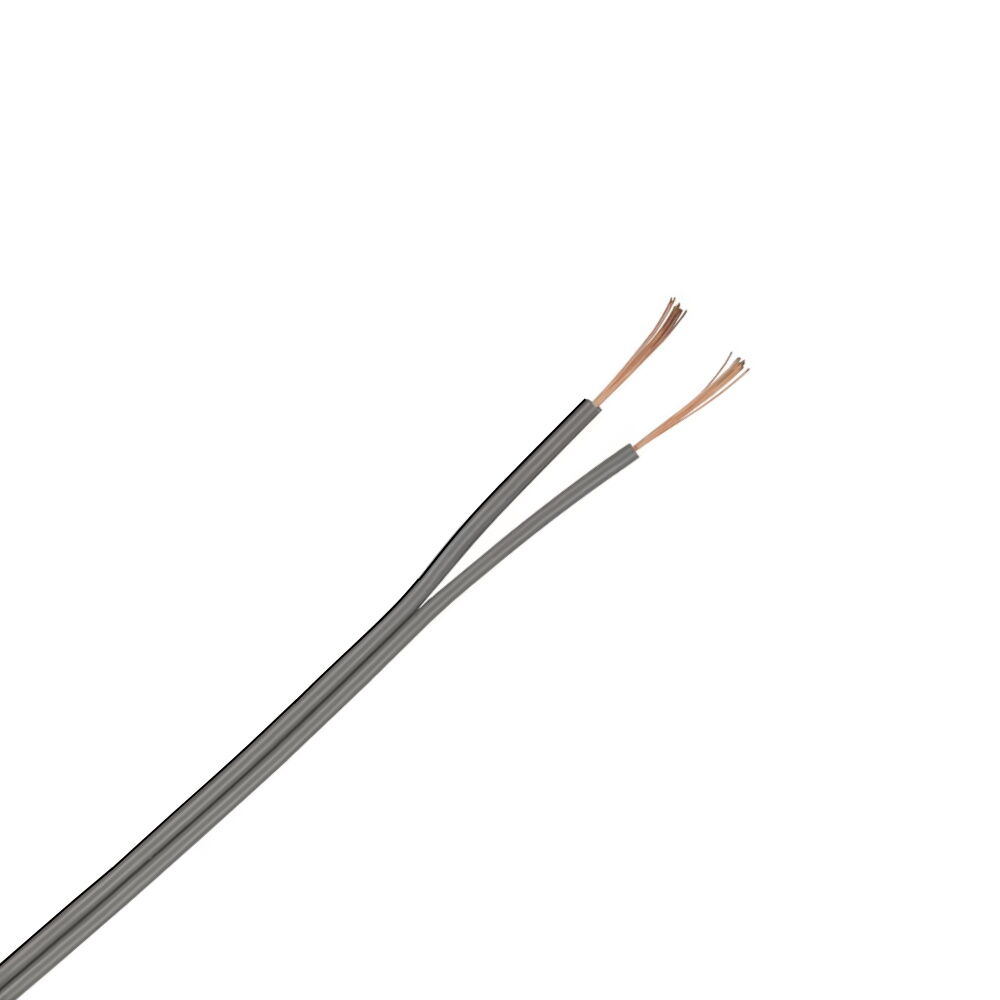

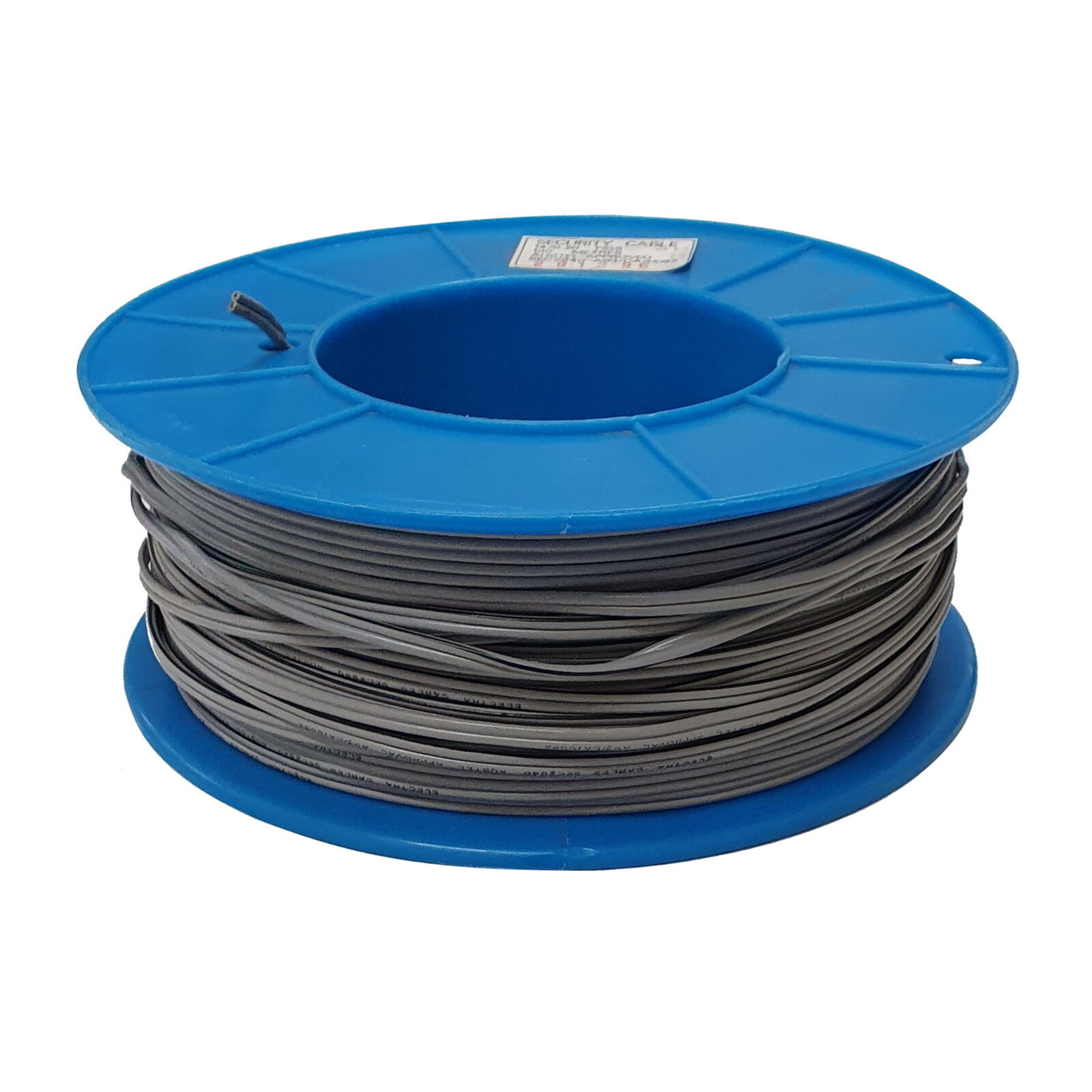

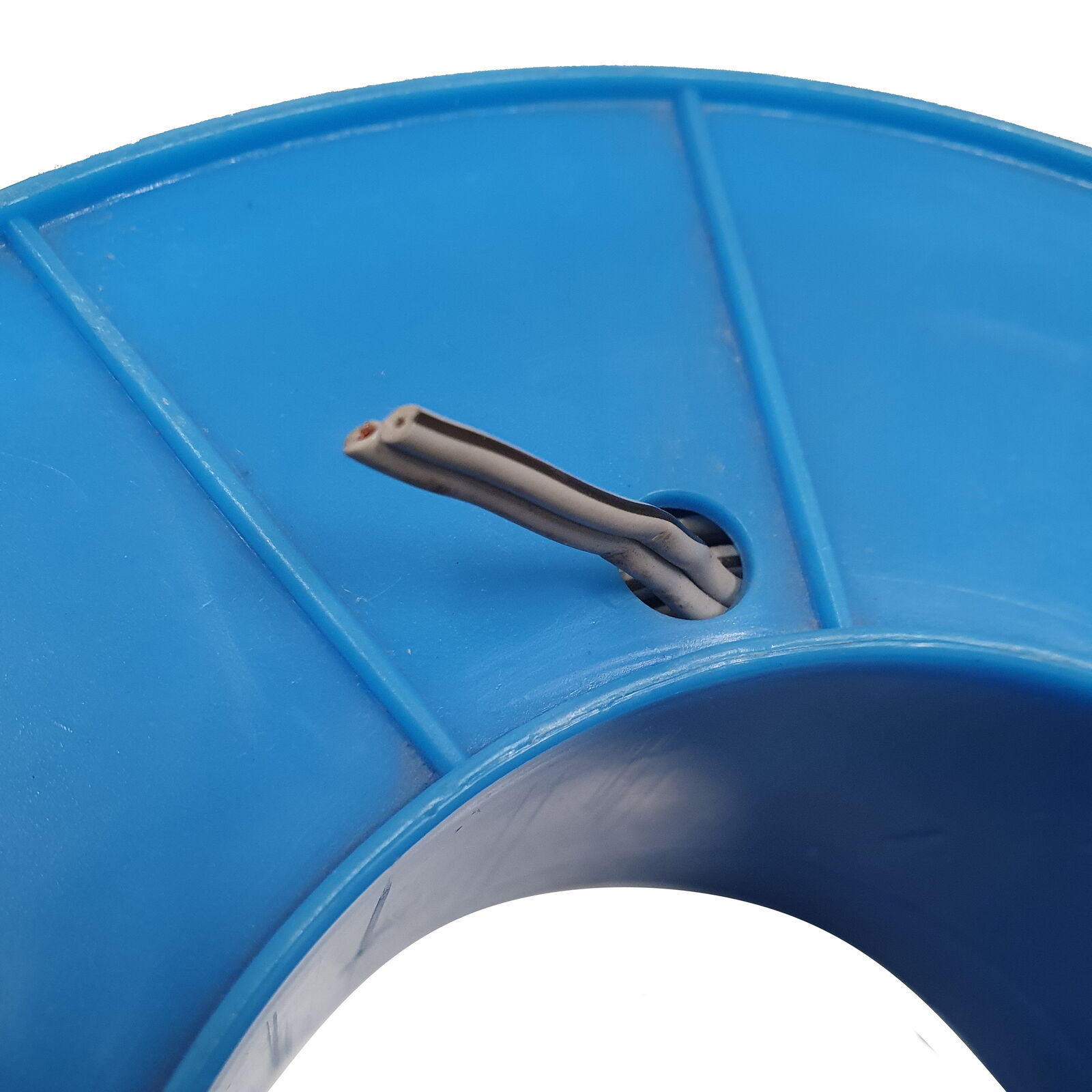

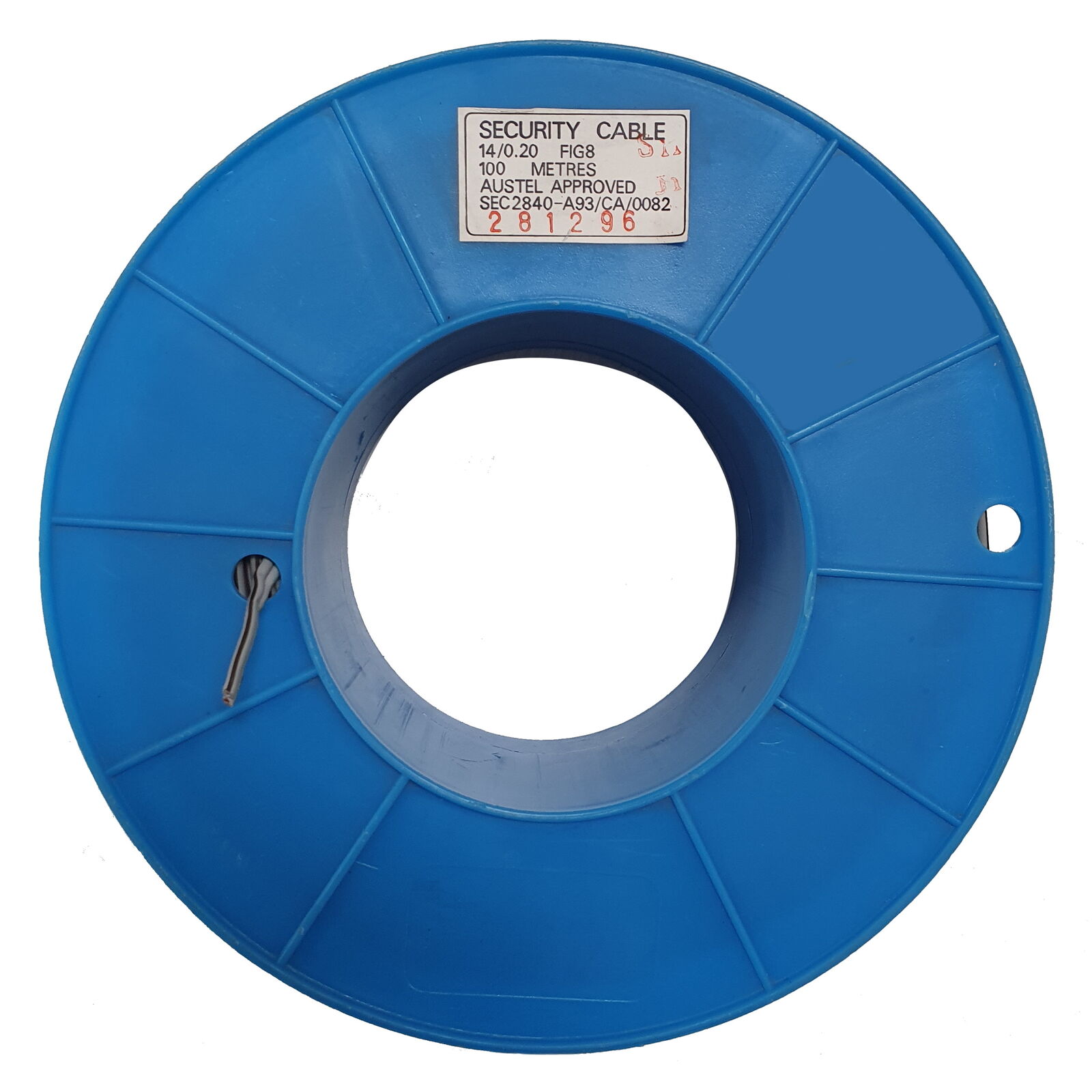

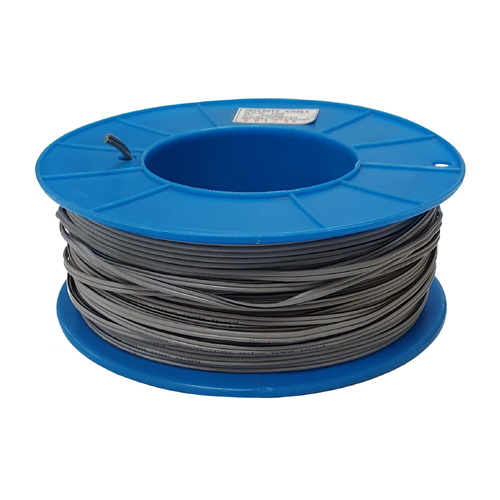

Cable for Auto or Security Figure 8 14/0.20 100 metres.
ECA2840 / SEC2840
Cable, Automotive, Security, Figure 8, 14/0.20
This cable is used for low voltage power cable in both CCTV and Alarm systems plus device wiring in alarms.
And general purpose automotive applications.
- Outer Colour: Grey / Black
- Size: 100m Spool
- Weight: 3.0kg
This security cable is not to be connected to mains power supply.
(A-1155)
| CODE: | ECA2840 / SEC2840 |
| STRANDING No./Dia. | 14/0.20 |
| RATING AMPs | 3 |
| NOM.AREA MM2 | 0.44 |
| INSULATION THICKNESS | 0.70 |
| NOM. O/Dia | 4.8 x 2.4 |
| OUTER SHEALTH | Grey |
| SPOOL | 100m |
| AUSTEL APPROV. | A93/CA/0082 |
| STANDARDS | AS2218 |
General purpose cable for automotive applications.
Conductor of plain annealed copper and insulation V75 PVC (75 degrees C)
Maximum voltage 100V D.C. and 32V A.C.
Current ratings specified are nominal only, derating factors will have to be applied in certain installations.
| Model # | ECA2810 / SEC840 |
| Format | SPOOL |
