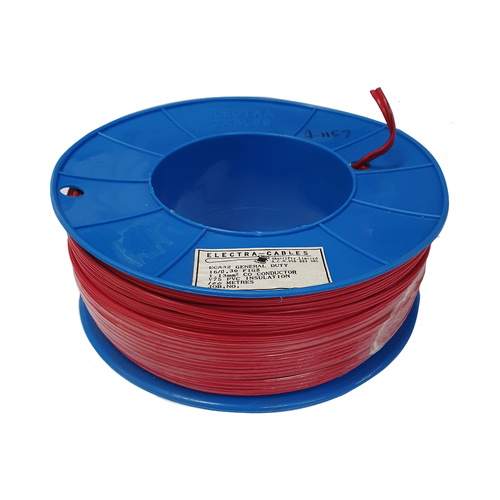

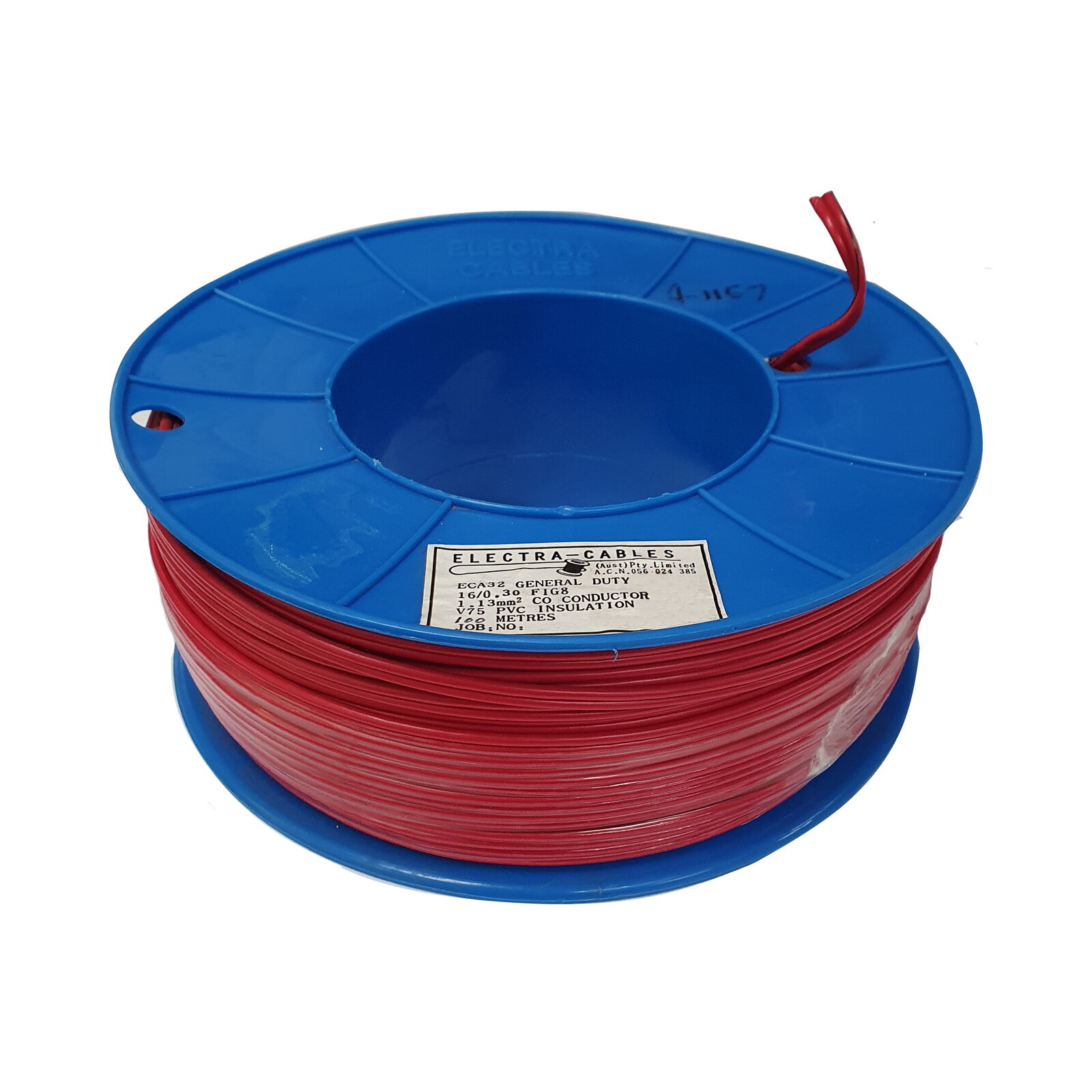

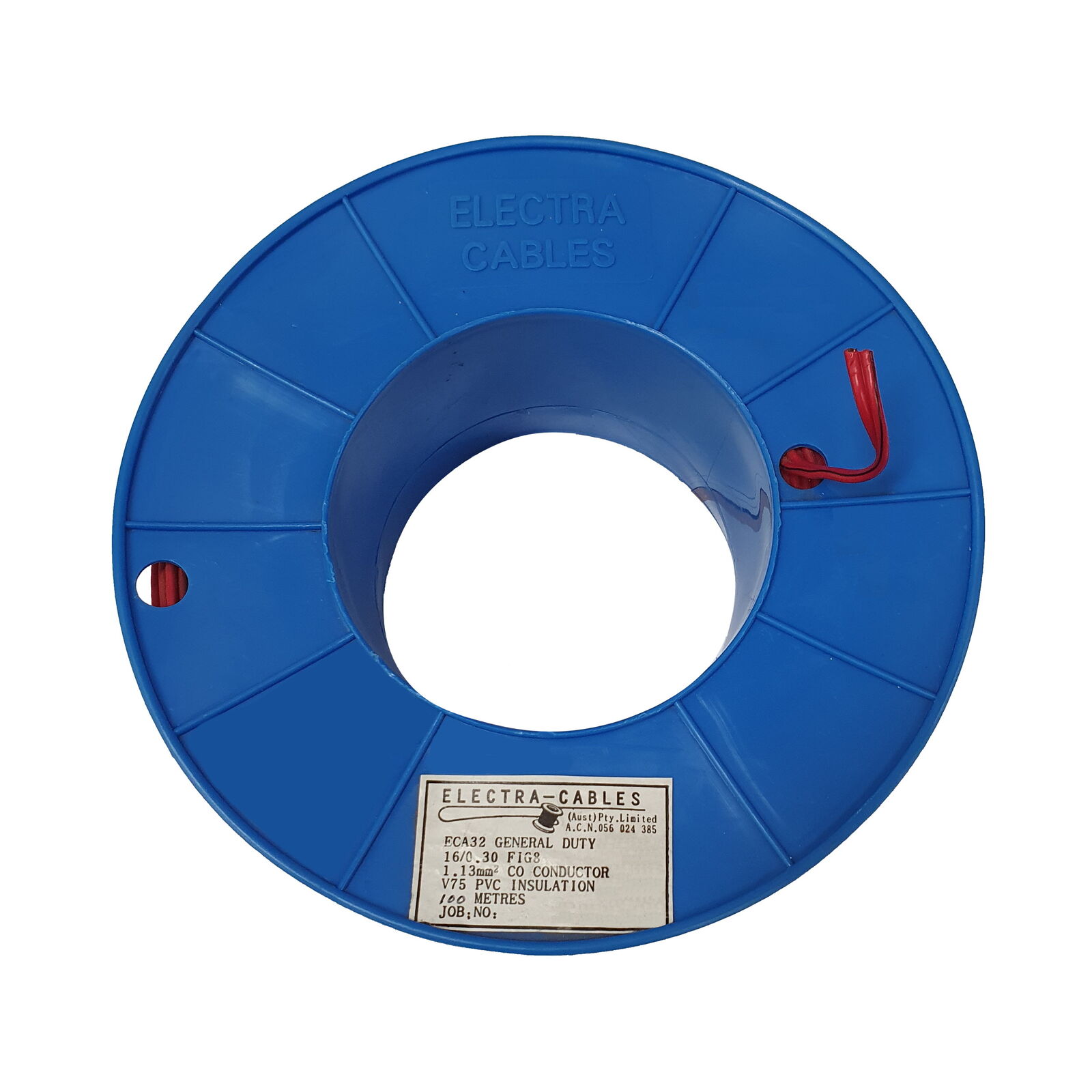

Cable Auto Figure 8, 3mm x 100m
A-1157-100
Figure 8 automotive electrical cable, 3mm, 10 amp, spool.
Figure 8 automotive electrical cable, 3mm, 10 amp, spool
Used primarily where dual wires are required for both power source or one for power and one for earth i.e side clearance lights on trailors.
These cables are not to be connected to mains power.
Colour: Red / Black
Size: 3mm x 100m Spool
Weight: 3.25 kg
(A-1157-100)
| CODE: | ECA32 |
| STRANDING No./Dia. | 16/0.30 x 2 |
| RATING AMPs | 10 |
| NOM.AREA MM2 | 1.13 |
| INSULATION THICKNESS | 0.60 |
| NOM. O/Dia | 2.7 |
| SHEATH COLOUR | Red / Black Line |
| SPOOL | 100m |
General purpose cable for automotive applications.
Conductor of plain annealed copper and insulation V75 PVC (75 degrees C)
Maximum voltage 100V D.C. and 32V A.C.
Current ratings specified are nominal only, derating factors will have to be applied in certain installations.
| Model # | ECA32-100 |
| Barcode # | 9318229132022 |
| Format | SPOOL |
