Cable Auto 5 Core HD 3mm x 30m
A-3103
$49.90
Only 1 Left!

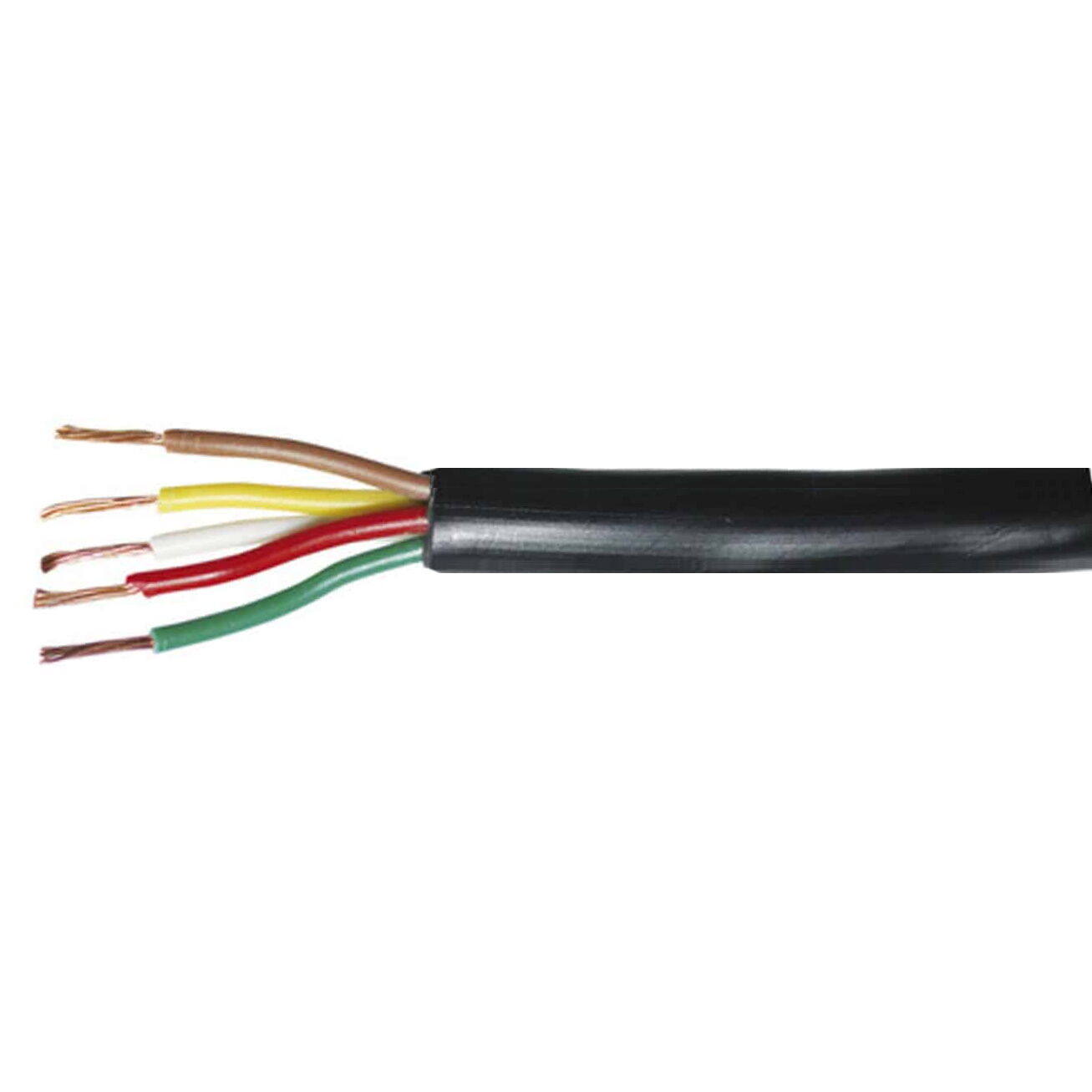

Five core automotive electrical cable, 3mm, 9 amp, spool.
5 core automotive electrical cable, 3mm, 9 amp, spool.
Car harness to trailer connector base.
Trailer plug to flashers, stop light and tail light (lights fully earthed).
- Outer Colour: Black
- Size: 3mm x 30m Spool
- Weight: 3.0kg
- 5 Core: White, Yellow, Red, Green, Brown
(A-3103)
| CODE: | ECA35 |
| STRANDING No./Dia. | 13/0.30 |
| RATING AMPs | 9 |
| NOM.AREA MM2 | 0.92 |
| INSULATION THICKNESS | 0.60 |
| NOM. O/Dia | 7.6 |
| OUTER SHEALTH | Black |
| SPOOL | 30m |
General purpose cable for automotive applications.
Conductor of plain copper and insulation V75 PVC (75 degrees C)
Maximum voltage 100V D.C. and 32V A.C.
Current ratings specified are nominal only, derating factors will have to be applied in certain installations.
| Model # | ECA35-30 |
| Barcode # | 9318229135016 |
| Format | SPOOL |
