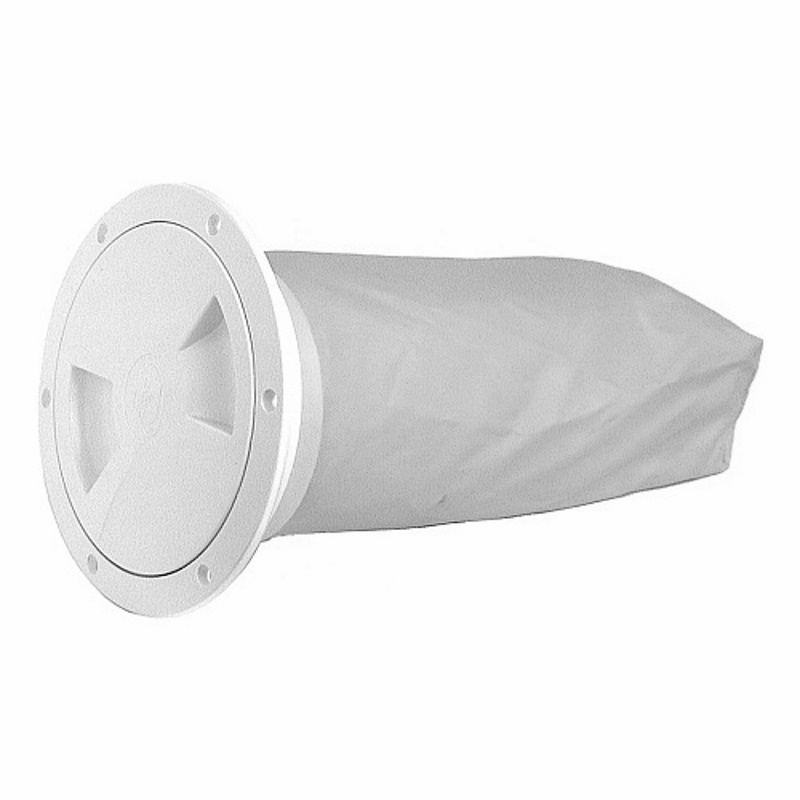

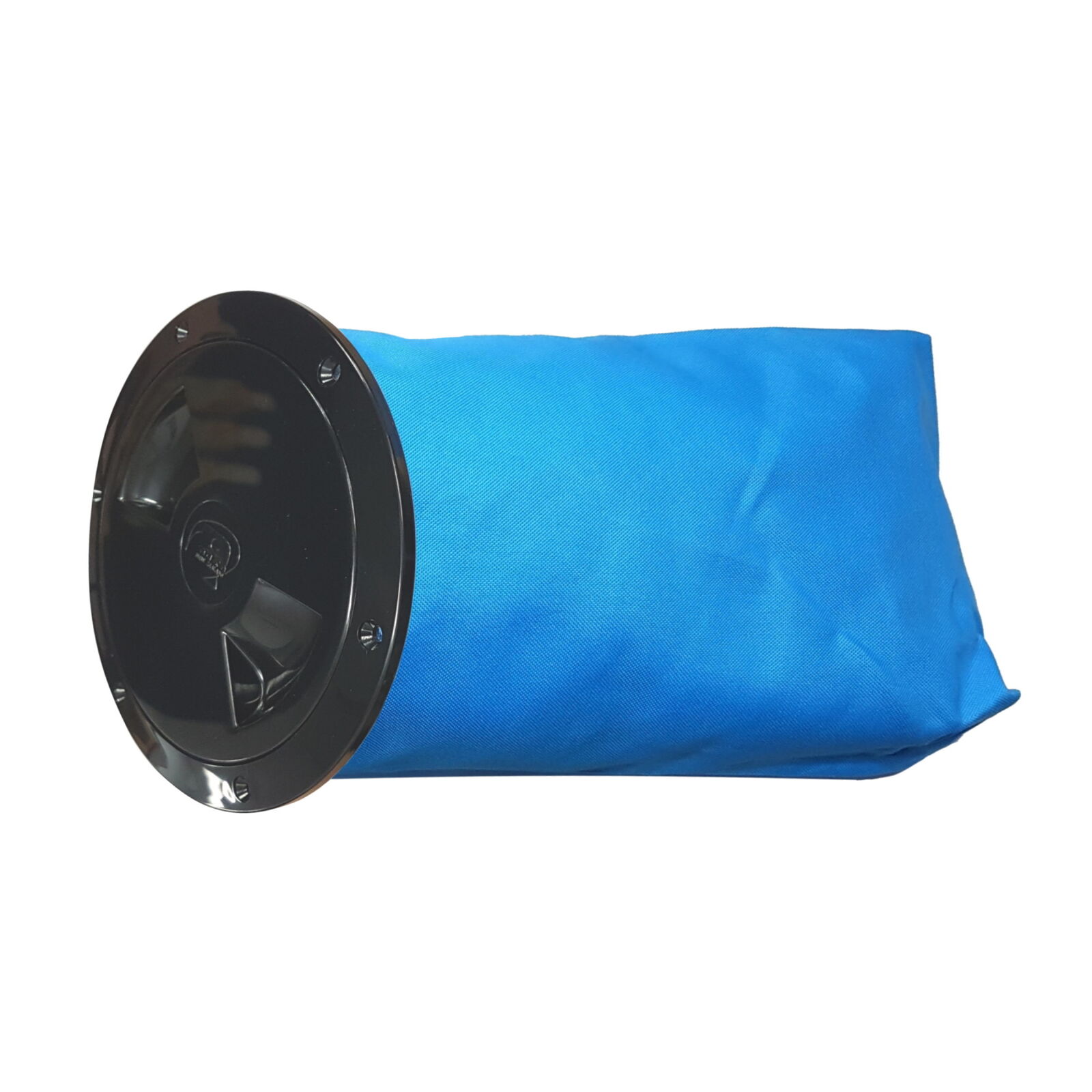

Nairn Inspection Port & Kitbag
NRP-Port&Kitbag
Nairn inspection ports are manufactured to high tolerances using premium materials to provide high strength, durability, water tightness.
Nairn inspection ports are manufactured to high tolerances using premium materials to provide high strength, durability and watertightness even in the most demanding applications. In short, total product integrity.

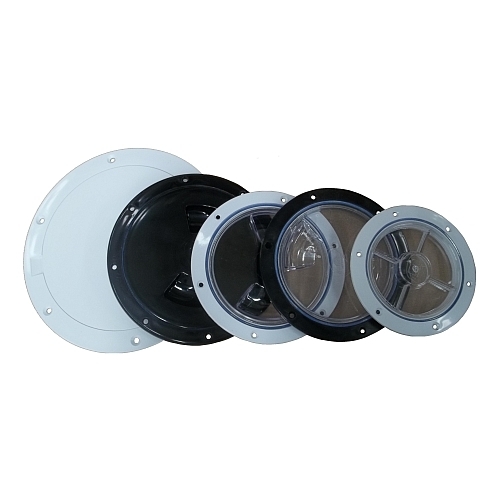

All models incorporate 'O' ring seals. In the 5"(125mm) and 6"(150mm) models the seal is located in the rim and is made from EPDM rubber for superior weathering characteristics.

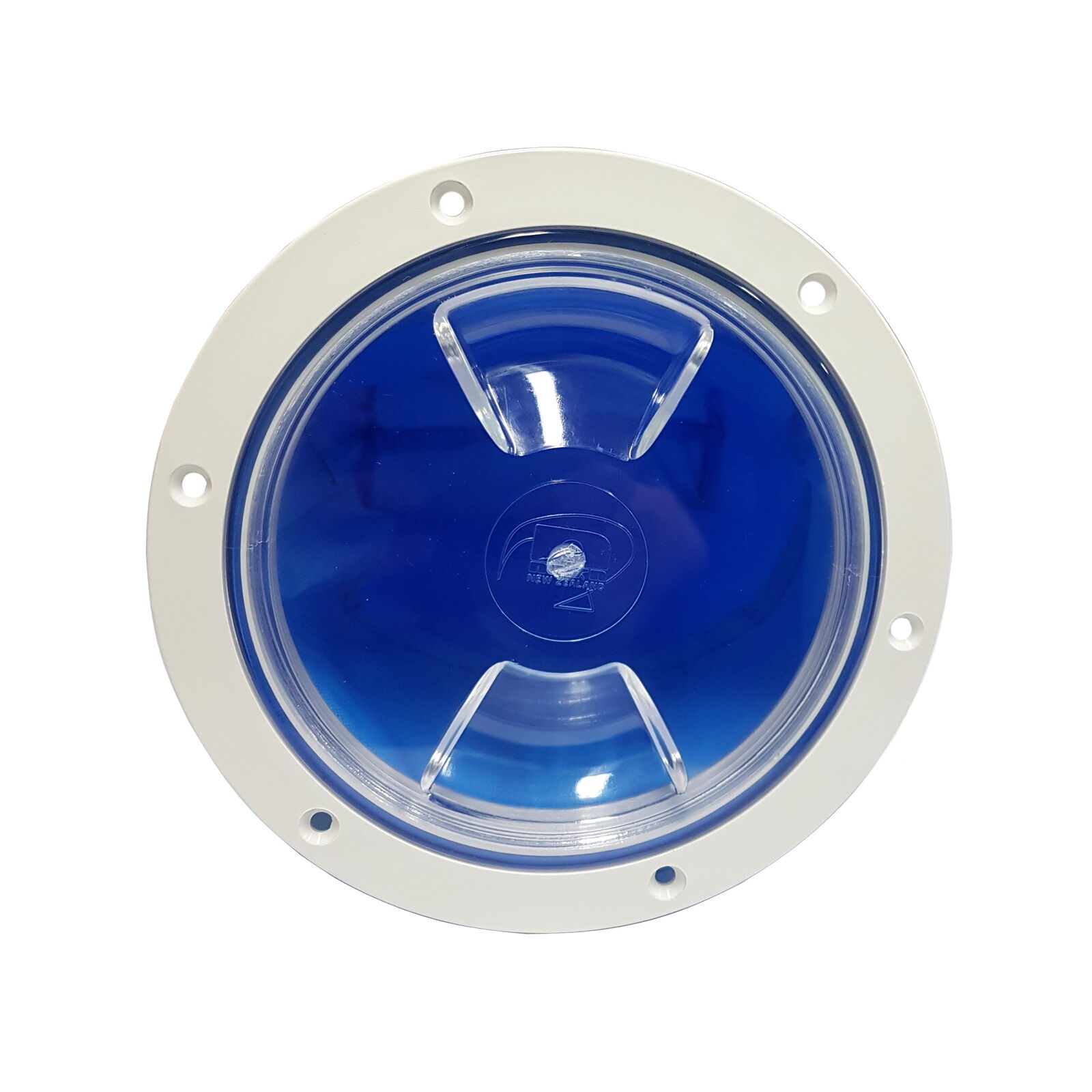

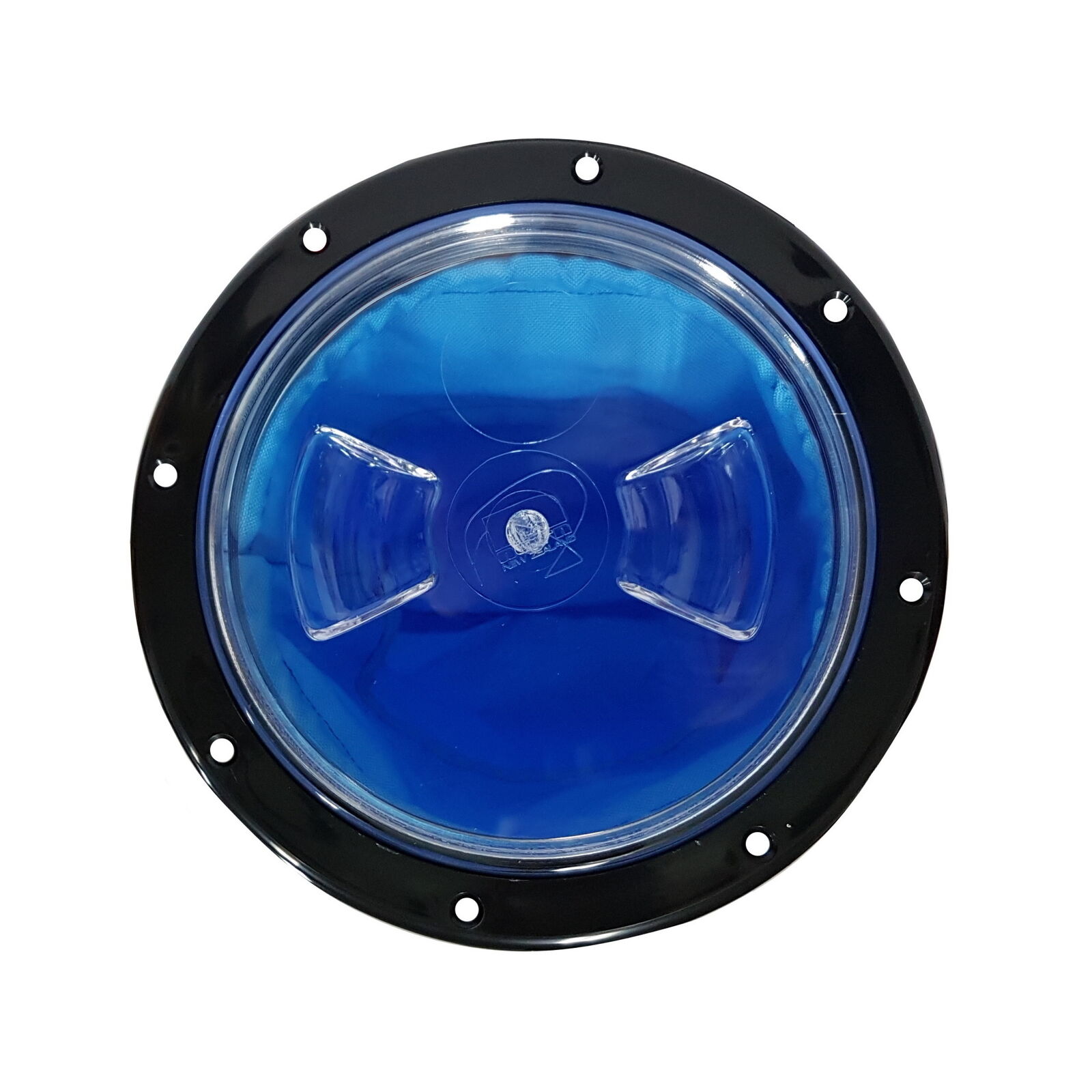

Rims and coloured lids are made from ABS plastic while polycarbonate plastic is used for clear lids to give both high transparency and impact resistance.
EPDM rubber is used for superior weathering characteristics.

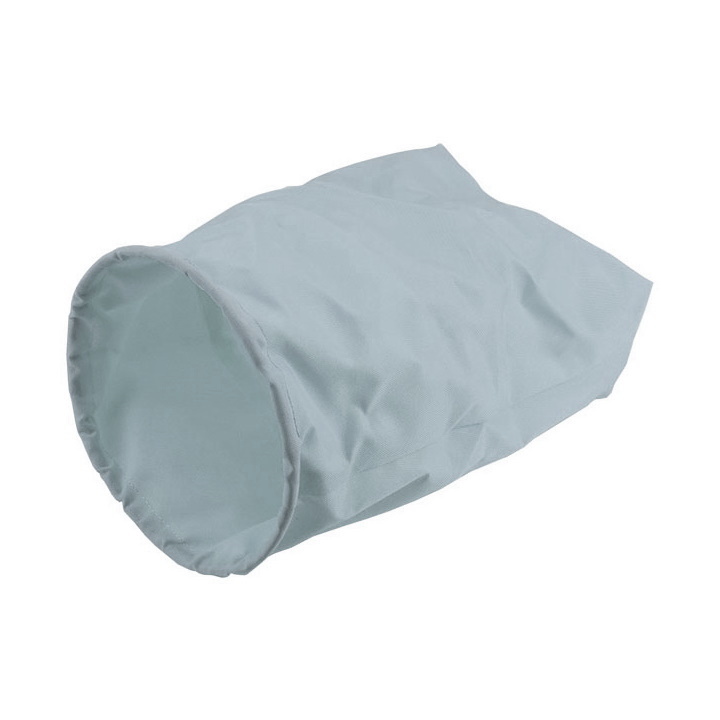

All rims have wide caulking flanges. All lids are screw in, with removable kit bags made from woven high density 420 nylon and feature corded closures for added security of stored items. Kitbag has approximate depth of 29cm and base of 8cm x 16cm.
(NRP-464_)
Rim Colour |
Lid Colour |
Internal Diameter " |
Internal Diameter mm |
External Diameter mm |
Cut Out Diameter mm |
Mount Holes mm |

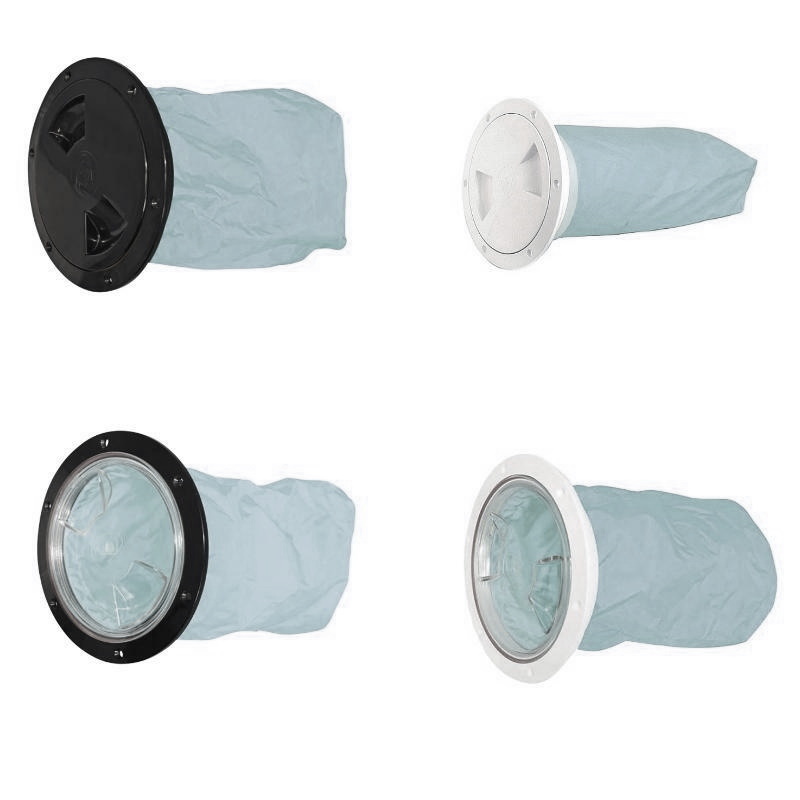

Black | Black | 5 | 125 | 170 | 140 | 5 cs |
White | White | 5 | 125 | 170 | 140 | 5 cs |
Black | Clear | 5 | 125 | 170 | 140 | 5 cs |
White | Clear | 5 | 125 | 170 | 140 | 5 cs |
Black | Black | 6 | 150 | 194 | 166 | 5 cs |
White | White | 6 | 150 | 194 | 166 | 5 cs |
Black | Clear | 6 | 150 | 194 | 166 | 5 cs |
White | Clear | 6 | 150 | 194 | 166 | 5 cs |
Model # | NRP-Port&Kitbag |
Format | Each |
