FK-SKS Edge Angle Controller Combi
SST-03157
Precise, 6 blade angle gauge to test and control the side and base edge angle.
Practical six piece version, to test and measure the side edge angle and base edge angle.
Also very helpful for new skis and boards, since this important information are not available for most products.

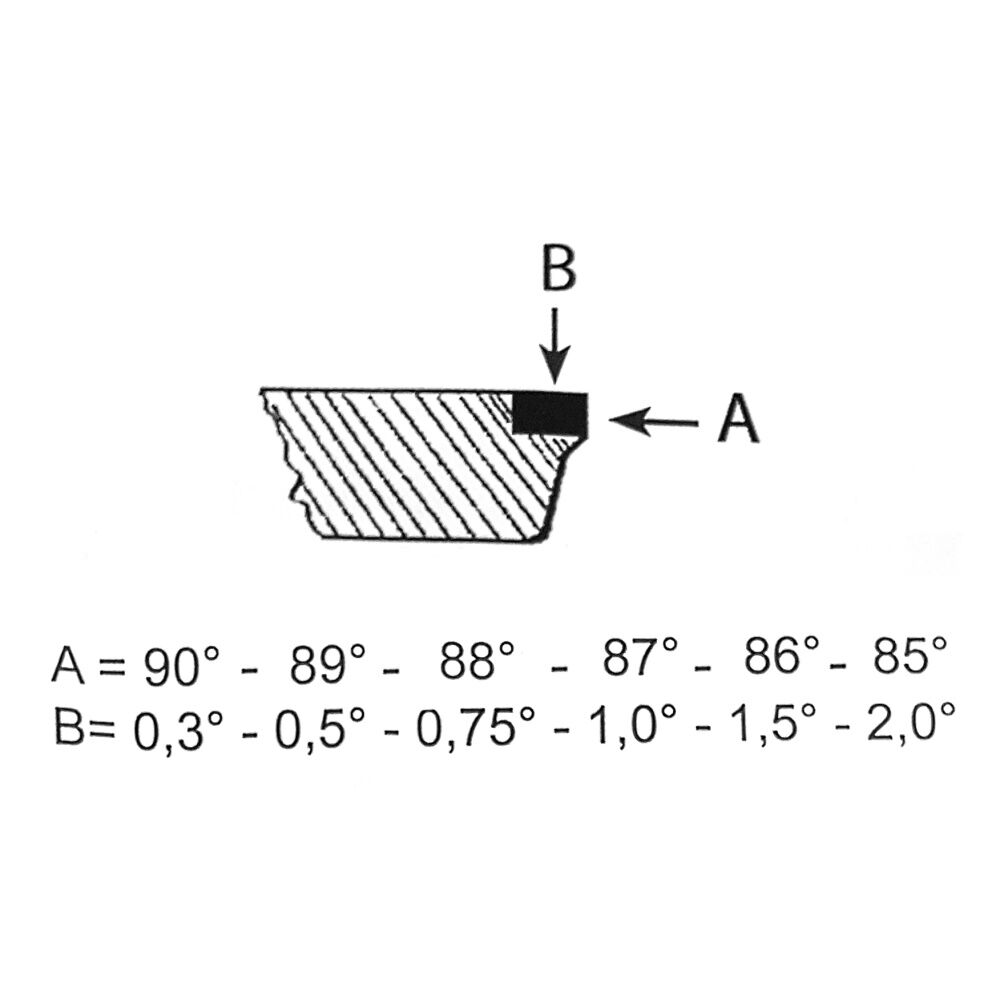

Side edge 90°-85°, Base edge 0.3°-2.0°
(SST-03157)
How to use this tool:
Side angle:
- The tool should be back-lit by a strong light source (we do not recommend using the sun).
- Choose a step to start with (each step is a degree, they're marked too).
- Place tool against the base with the step (degree) snugged up against the side edge. (see photo)
- You have the correct measurement when you don't see light between the tool and the face of the side edge.
Base angle:
- The tool should be back-lit by a strong light source (we do not recommend using the sun).
- Choose a step to start with (each step is a degree, they're marked too).
- Place tool against the base with the tiny on the base, just inside of the edge (see photo)
- You have the correct measurement when you don't see light between the tool and the face of the side edge.
Note: It is possible the tool will not match up with the edge angle, not matter how you try! Don't panic, just choose the angle it matches most closely and call it good. It's darn hard to tell the difference between 1° and 1.15° in the real world, go with 1° and be at peace.
| Model # | 3157 |
| Barcode # | 4250493730847 |
| Format | Set |
