Cable Auto 2 Core 3mm
A-1157
$58.00
Only 1 Left!

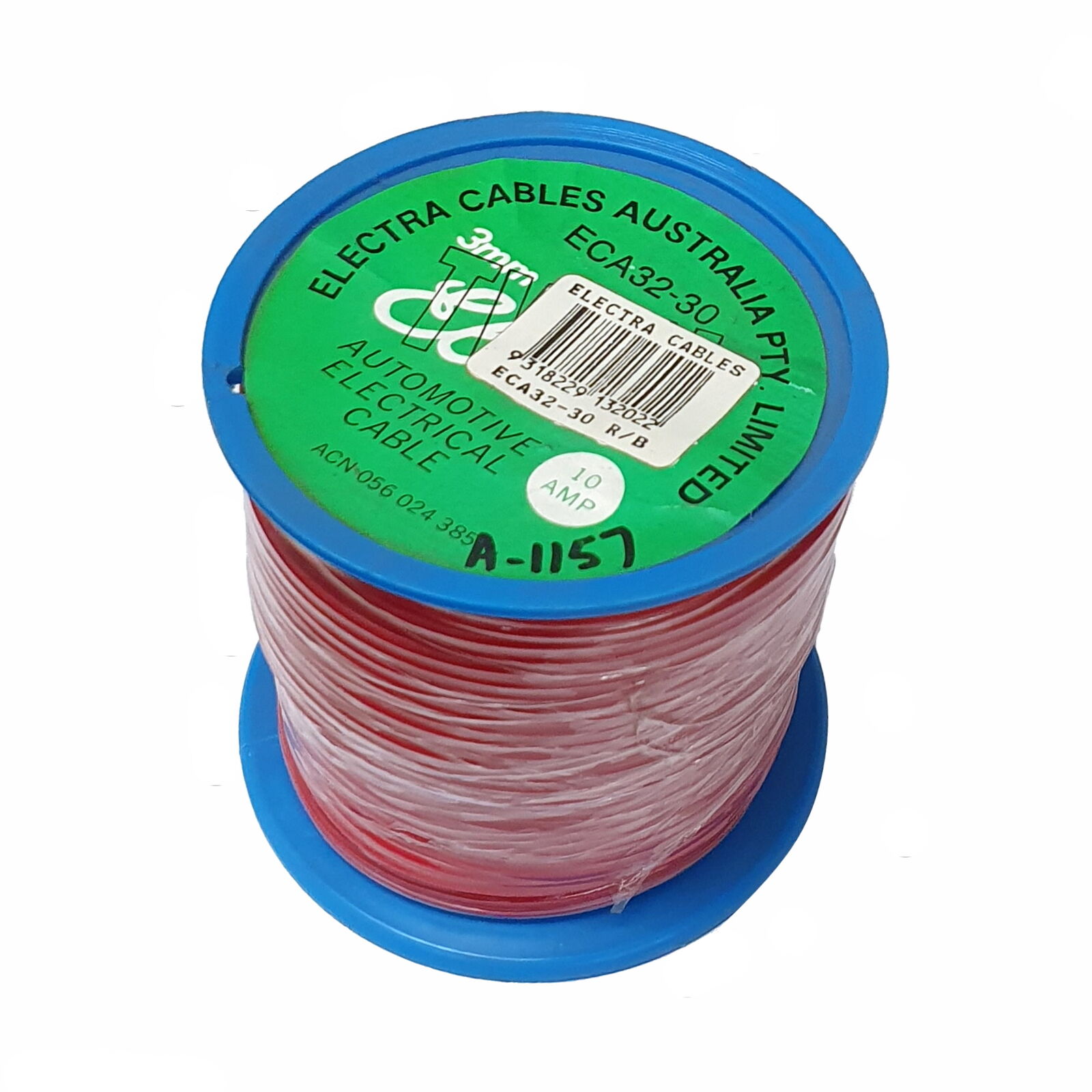

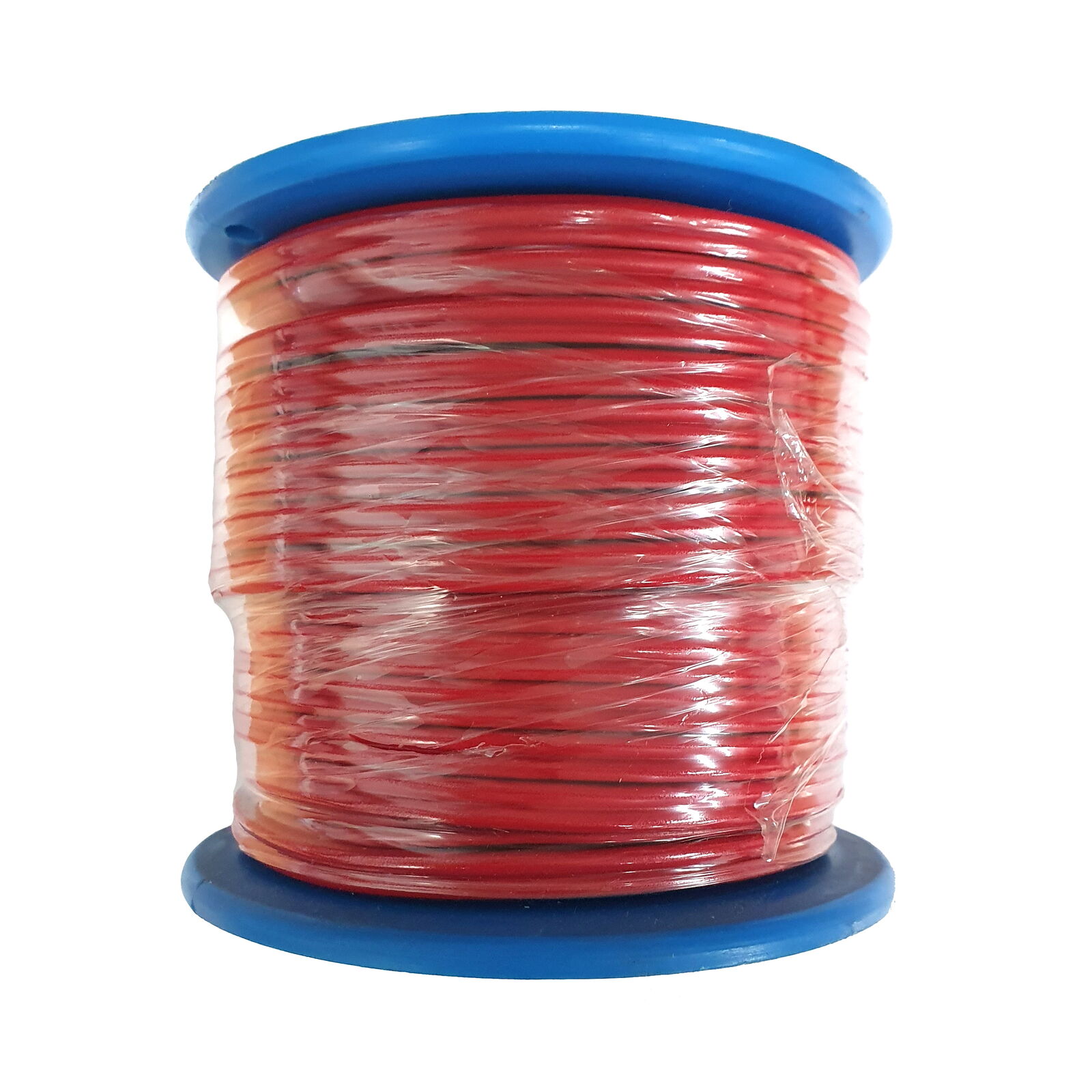

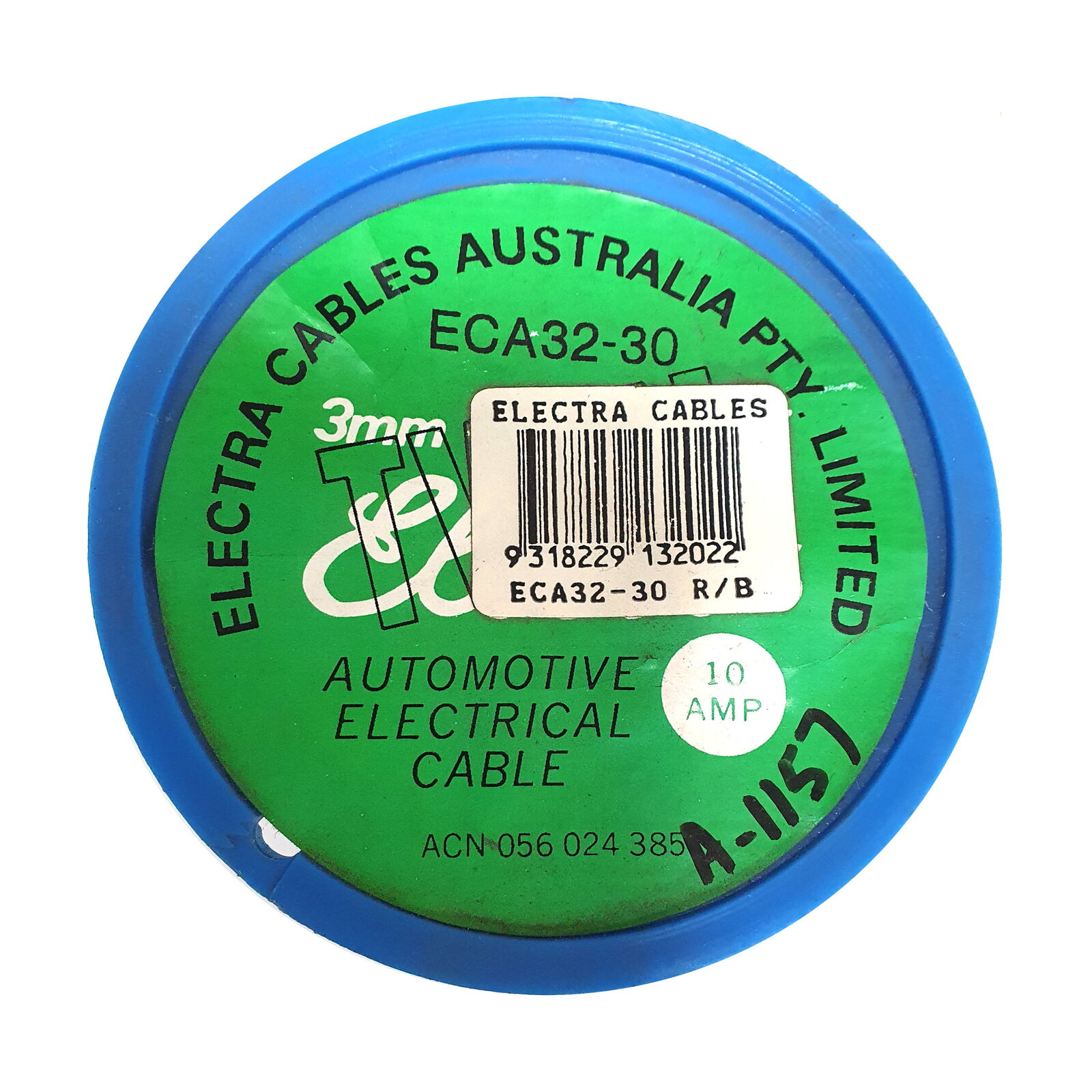

Figure 8 automotive electrical cable, 3mm, 10 amp, spool.
Figure 8 automotive electrical cable, 3mm, 10 amp, spool
Used primarily where dual wires are required for both power source or one for power and one for earth i.e side clearance lights on trailors.
Colour: Red
Size: 3mm x 30m Spool
Weight: 1kg
(A-1157)
| CODE: | ECA32 |
| STRANDING No./Dia. | 16/0.30 x 2 |
| RATING AMPs | 10 |
| NOM.AREA MM2 | 1.13 |
| INSULATION THICKNESS | 0.60 |
| NOM. O/Dia | 2.7 |
| COLOUR | Red |
| SPOOL | 30m |
General purpose cable for automotive applications.
Conductor of plain copper and insulation V75 PVC (75 degrees C)
Maximum voltage 100V D.C. and 32V A.C.
Current ratings specified are nominal only, derating factors will have to be applied in certain installations.
| Model # | ECA32-30 R/B |
| Barcode # | 9318229132022 |
| Format | SPOOL |
